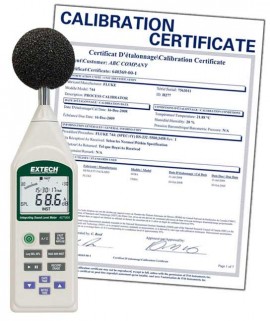

EXTECH 407780ANIST Sound Level Meter
This sound level meter meets IEC 61672-1, IEC 60651/60804 Type 2, and ANSI S1.4 Type 2 standards. It features precise linearity across a wide dynamic range of up to 100 dB. The device has a 4-digit multifunction LCD with an analog bargraph display, and supports measurement parameters such as SPL, SPL minimum and maximum, SEL, and Leq. It offers programmable integrating time, A- and C-weighting, and response settings including impulse, fast, and slow modes. The meter includes a datalogging function capable of recording up to 32,000 records, with a real-time calendar and clock. It has analog and alarm outputs for connection with frequency analyzers, chart recorders, external dataloggers, and sound level alarms. A built-in USB interface allows for data transfer using the included Windows® datalogging software. The microphone is a detachable 1/2” electret condenser type, and the device includes a tripod mount. An ISO certification with full data and uncertainties is included.
EXTECH 407780ANIST Sound Level Meter Specifications:
- Applicable Standards: IEC 61672-1, 60651 and 60804 Type 2, ANSI S1.4 Type 2
- Accuracy: +1.50B (ref 944B@1KHz)
- Resolution: 0.108
- Display: 4 digital LCD with analog bargraph
- Measurement Parameters: SPL, SPL MIN/MAX, SEL, and Leq
- Measurement Range: 30dB to 130dB
- Linearity Range: 410008
- Measurement Frequency Range: 31.5Hz to 8KHz
- Frequency Weighting: A and C
- Response: Impulse, Fast, and Slow
- Microphone: 1/2" Electret condenser
- Sampling Time: updated every 0.58 seconds
- Bargraph: 4B steps, 100dB range, 125ms update
- Power Supply: Four 1.5V AA batteries, optional AC adapter
- Battery Life: approximately 24 hours
- Dimensions: 10.4 x 2.8 x 0.8 inches (265 x 72 x 21 mm)
- Weight: 10.9 oz (310 g)
- Outputs: Analog AC/DC output 2Vrms (full scale), 10mVDC/AB
- Includes: windscreen, adjustment screwdriver, USB cable, Windows software, battery, case
- Certifications: IEC, ANSI, ISO
Buy the Buy Extech Sound Level Meter Part Number 407780A Online
Purchase the Extech Sound Level Meter online today to ensure accurate noise measurements, compliance with international standards, and robust data logging capabilities. Ideal for occupational safety, environmental testing, and machinery evaluation, this meter features a high-resolution LCD, programmable integrating time, and a USB interface for easy data transfer. The rugged design includes a detachable microphone, tripod mount, and comprehensive accessories such as windscreen and software. Experience professional-grade sound measurement with reliable performance you can trust for critical noise analysis.
Get Extech 407780A sound level meter today—designed for precise noise measurement and data logging in professional environments.
Frequently Asked Questions
Where can I buy EXTECH 407780ANIST?
You can click on the BUY or RFQ button to purchase 407780ANIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part 407780ANIST?
You can download the 407780ANIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of 407780ANIST?
EXTECH
