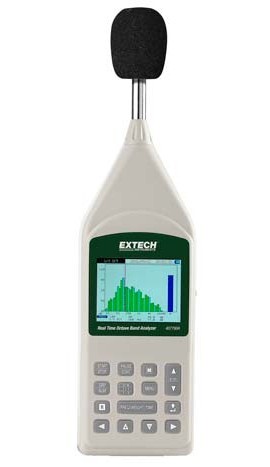

EXTECH 407790ANIST Sound Level Meter
This sound level meter offers a broad measurement range with five adjustable levels, featuring a 3.5-inch TFT color backlit LCD for clear readings. It stores noise data on microSD cards, enabling easy transfer to a PC using the included software and cable. Supporting A, C, and Z weighting with fast or slow response options, it operates from 25 Hz to 10 kHz frequency range, meeting ANSI and IEC Type 2 standards. The device features an internal self-test, a detachable condenser microphone, and an analog AC/DC output for comprehensive noise analysis in various environments. It’s ideal for occupational safety, environmental monitoring, and industrial noise assessments.
EXTECH 407790ANIST Sound Level Meter Specifications:
- Applicable standards: ANSI S14 Type 2, EN IEC 60651, EN IEC 60804, EN IEC 1260-1995
- Accuracy: ±2.1 dB @ 94 dB, 1 kHz
- Measurement range: 30 to 130 dB across five ranges in 10 dB steps
- Frequency range: 25 Hz to 10 kHz
- Display: 3.5-inch (89mm), 320x240 TFT color backlit LCD; shows Leq, Lmax, Lmin, Lp, Los, Lio
- Signal output: AC: 1 Vrms at full scale; DC: 3.0V, 25 mV/dB
- Memory: microSD card (included)
- Measurement time: 1 second to 23 hours 59 minutes
- Power: Four 1.5V size C batteries or external 6V, 1A DC supply
- Dimensions: 13.6 x 3.9 x 2.4 inches (345 x 100 x 60 mm), Weight: 33.5 oz (950 g)
Buy the Buy Extech Sound Level Meter Part Number 407790A NIST Online
Experience precise noise measurement with the Extech Sound Level Meter, featuring a wide measurement range, easy data storage on microSD, and a bright color LCD display. Ideal for monitoring industrial, environmental, and occupational noise levels, this professional device supports multiple weighting networks, broad frequency response, and provides comprehensive data for compliance and analysis. With its detachable condenser microphone and internal self-test, it guarantees accuracy and reliability for safety audits, environmental assessments, and noise reduction projects. Purchase online today for dependable noise monitoring.
Buy Extech 407790A noise level meter now and ensure accurate environmental and industrial noise measurements with reliable data logging and analysis features.
Frequently Asked Questions
Where can I buy EXTECH 407790ANIST?
You can click on the BUY or RFQ button to purchase 407790ANIST from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part 407790ANIST?
You can download the 407790ANIST datasheet or visit the EXTECH website for support.
Who is the manufacturer of 407790ANIST?
EXTECH
