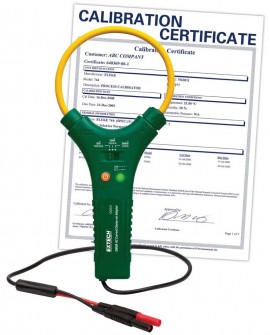

EXTECH CA3010NIST AC Current Clamp Meter
The Extech CA3010-NIST is a high-current clamp meter capable of measuring AC currents up to 3000A across three ranges. It features a flexible 10-inch (25.4 cm) clamp jaw that easily fits around bus bars and cable bundles, as well as a 7.5 mm diameter cable opening suitable for tight spaces and large conductors. The device includes an ISO certification with full data and uncertainty details. It offers a twist-lock clamp for easy opening and closing, and has safety ratings of CAT III-1000V and CAT IV-600V. Compatible with most multimeters and clamp meters with standard banana plug sockets.
EXTECH CA3010NIST AC Current Clamp Meter Specifications:
- AC Current Ranges: 30.004A (100mV per Amp); 300.0A (10mV per Amp); 3000A (1mV per Amp)
- Max Resolution: 0.014
- Basic Accuracy: ±3%FS (45 to 500Hz)
- Flex Cable Diameter: 0.3 inch (7.5 mm)
- Flex Cable Tip Diameter: 0.51 inch (13 mm)
- Dimensions: Model CA3010: 11 x 4.7 x 1 inches; Model CA3018: 13.8 x 5.1 x 1 inches
- Weight: Model CA3010: 170g; Model CA3018: 200g
- Safety Ratings: CAT III-1000V, CAT IV-600V
- Clamp Cable Length: 10 inches (25.4 cm) or 18 inches (45.7 cm)
- Cable Diameter: 7.5 mm
- Connector: Standard banana plug
- Operation: Twist to open/lock clamp
- Battery: Two AAA batteries with capacity indicator
- Certifications: Includes optional calibration traceable to NIST
Buy the Extech CA3010 – Reliable AC Current Clamp for Industrial Applications
Purchase your Extech CA3010 high-current AC clamp meter online today to experience precise measurement of AC currents up to 3000A. Its flexible 10-inch jaw easily wraps around cables and bus bars, making it ideal for tight spaces and large conductors. The twist-lock clamp design allows quick and secure opening and closing, while safety ratings of CAT III and CAT IV guarantee reliable protection during use. Equipped with a battery indicator and standard banana plug compatibility, this tool is essential for industrial electrical testing and maintenance.
Order your Extech CA3010 high-current AC clamp meter today and ensure accurate, safe measurements in demanding industrial environments.
