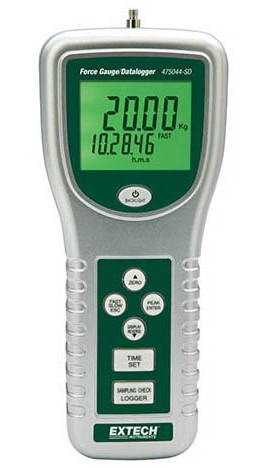

EXTECH 475044SD High Capacity Force Gauge
The Extech 475044-SD is a high-capacity push/pull force gauge designed for precise measurements in electronics, automotive, chemical, plastics, and machinery sectors. With a maximum capacity of 20 kg, 44 lbs, or 196 Newtons, it features a dual backlit LCD with reversible display to ensure clear visibility from any angle. The device provides accurate readings with a resolution of 0.01 Ibs, 0.01 kg, or 0.05 Newtons, and updates every 0.2 seconds in fast mode. It records data on an included SD card, supports peak hold functionality, and offers user-friendly zero adjustment and overload protection. Its robust design makes it ideal for varied tension and compression testing applications.
EXTECH 475044SD High Capacity Force Gauge Specifications:
- Range: 20kg, 44 lbs, 196 Newtons
- Accuracy: (23°C) ±0.5% + 2 digits
- Resolution: 0.01 Ibs, 0.01 kg, 0.05 Newtons
- Overload capacity: 30kg
- Update Rate: Fast mode 0.2 sec, Slow mode 0.6 sec
- Full scale deflection: 2.00mm
- Transducer type: Load cell
- Dimensions: 8.5 x 3.5 x 1.8 inches (215 x 90 x 45 mm)
- Weight: 1.4 pounds (650 g)
- Features: Peak hold, zero adjust, SD card datalogging, reversible LCD, backlit display
- Includes: Load cell transducer, SD card, hooks, extension rod, batteries, carrying case
Buy the Extech Series High Capacity Force Gauge: 475044SD
Discover the Extech Force Gauge 475044SD, a reliable instrument for tension and compression measurements across diverse industries. Its 20 kg capacity and high-precision load cell ensure accurate readings, while the dual backlit LCD with reversible display allows clarity from any viewing angle. Data logging features enable easy transfer via SD card, with sample updates every 0.2 seconds. The device includes a peak hold function and zero adjustment for ease of use. Perfect for testing, quality control, and industrial applications, order online today for precise, efficient measurements.
Order your Extech Series 475044SD high capacity force gauge today and enhance your tension and compression testing with reliable and precise measurements.
