EXTECH TM500NIST Thermocouple Datalogger

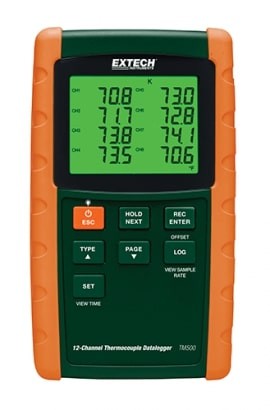

The Extech TM500-NIST is a high-precision thermocouple datalogger that supports simultaneous measurement from channels 1 to 8 or 9 to 12, with ISO certification and full data uncertainties. It features offset adjustment for zero calibration, manual storage of 99 readings, and records data with date and time stamps onto an included SD card in Excel format. The device offers programmable sampling rates from 1 to 3600 seconds, Min/Max functions, data hold, auto power-off, and supports six thermocouple types. Ideal for thermal chamber analysis, quality control, HVAC systems, refrigeration, oven testing, and automotive temperature monitoring.
EXTECH TM500NIST Thermocouple Datalogger Specifications:
- Thermocouple Types Supported: J, K, E, T, R, S
- Temperature Range: Type J -100 to 1150°C, Type K -100 to 1300°C, Type T -100 to 400°C, Type E -100 to 900°C, Type R 0 to 1700°C, Type S 0 to 1500°C
- Resolution: Not specified (likely variable based on thermocouple type)
- Accuracy: ±0.5% of reading for R and S types; ±1.8°F/1°C for J, K, E, T types
- Sampling Rate: 1 to 3600 seconds, user programmable
- Memory: Stores up to 99 readings manually
- Display: Simultaneous channels CH1 to CH8 or CH9 to CH12
- Power: 8 AA batteries
- Dimensions: 8.9 x 4.9 x 2.5 inches (225 x 125 x 64 mm)
- Weight: 2.1 lbs (944 g)
- Data Logging: Records measurements with date and time onto SD card (included) in Excel format
- Additional Features: Min/Max, Data Hold, Auto Power Off, Offset Adjustment, External probes available
Buy the Extech Series TM500 Thermocouple Datalogger: TM500NIST
Purchase your Extech Series TM500 thermocouple datalogger online today and benefit from precise temperature measurements with simultaneous multi-channel data logging. Equipped with programmable sampling rates from 1 to 3600 seconds, it supports six thermocouple types including J, K, E, T, R, and S. The device records measurements with date and time stamps onto an SD card in Excel format, making data analysis straightforward. Compact, battery-powered, and featuring Min/Max, data hold, and auto power-off, it’s perfect for thermal chambers, HVAC, refrigeration, and automotive temperature projects. Buy now for reliable performance.
Order your Extech Series TM500 thermocouple datalogger today and ensure reliable, accurate temperature monitoring for thermal chambers, HVAC systems, and quality control projects.
