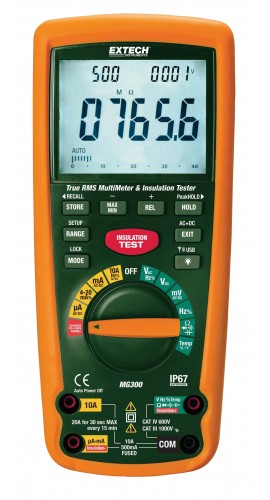

EXTECH MG300 Multimeter
The Extech MG300 is a versatile multimeter featuring True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. It offers 13 functions, including AC/DC voltage, current, resistance, capacitance, frequency, temperature, and diode/continuity testing. The device supports test voltages up to 1000V and insulation resistance measurements up to 4 GΩ. It includes duty cycle measurement and milliamps for 4-20mA current loops. The multimeter is equipped with a USB interface for real-time monitoring on a laptop or PC from up to 30 feet wirelessly, enabling convenient data recording. Additional features include auto discharge of capacitive voltage, a large backlit triple display, Min/Max and Relative modes, Data Hold, auto power off, and a waterproof (IP67) rugged design. It also has a lock power-on function for hands-free operation, and holds a CAT IV 600V safety rating.
EXTECH MG300 Multimeter Specifications:
- Insulation Resistance: 0.001MΩ to 4000MΩ
- Test Voltages: 125V, 250V, 500V, 1000V
- AC Voltage Range: 1000V, Resolution: 0.1mV, Accuracy: 2.1%
- DC Voltage Range: 1000V, Resolution: 0.01mV, Accuracy: 2.0%
- AC Current: 10A, Resolution: 0.1pA, Accuracy: 2.1%
- DC Current: 10A, Resolution: 0.01pA, Accuracy: 2.1%
- Resistance: 40MΩ, Resolution: 0.010, Accuracy: 2.0%
- Capacitance: 40mF, Resolution: 0.001nF, Accuracy: 2.3%
- Frequency: 0-10MHz, Resolution: 0.001Hz, Accuracy: 2.0%
- Temperature: -58 to 2192°F, Resolution: 1°F, Accuracy: ±4.5°F
- Transmitter: 50 to 1200°C, Resolution: 1°C, Accuracy: 2.1%
- Display: Large backlit triple display, Waterproof (IP67), Dimensions: 7.8 x 3.6 x 1.9 inches
- Weight: 20.5 oz (582g), Power Source: 6 x AA batteries
- Safety Rating: CAT IV 600V, Wireless connectivity: 915MHz/433MHz, Includes calibration certificate traceable to NIST
- Additional features: Min/Max, Relative mode, Data Hold, Auto Power Off, Lock Power On, Auto discharge of capacitive voltage
Buy the Extech Series MG300 Insulation Tester with Wireless PC Interface: MG300
Purchase the Extech MG300 multimeter online today to receive a versatile, reliable tool with True RMS measurements, wireless data transfer, and a rugged waterproof IP67 design. Ideal for professional electricians and technicians, it offers 13 functions including AC/DC voltage, current, resistance, capacitance, frequency, and temperature measurement up to 1000V and 4 GΩ insulation resistance. Wirelessly monitor readings on your PC or laptop from up to 30 feet away, ensuring convenience and precision in your testing process. Order now to enjoy fast shipping and expert support.
Order your Extech Series MG300 insulation tester with wireless PC interface today and equip your toolkit with reliable, accurate electrical testing capability.
Frequently Asked Questions
Where can I buy EXTECH MG300?
You can click on the BUY or RFQ button to purchase MG300 from an authorized EXTECH distributor.
How do I troubleshoot issues or seek technical support for part MG300?
You can download the MG300 datasheet or visit the EXTECH website for support.
Who is the manufacturer of MG300?
EXTECH
