A Premier B2B Part Search

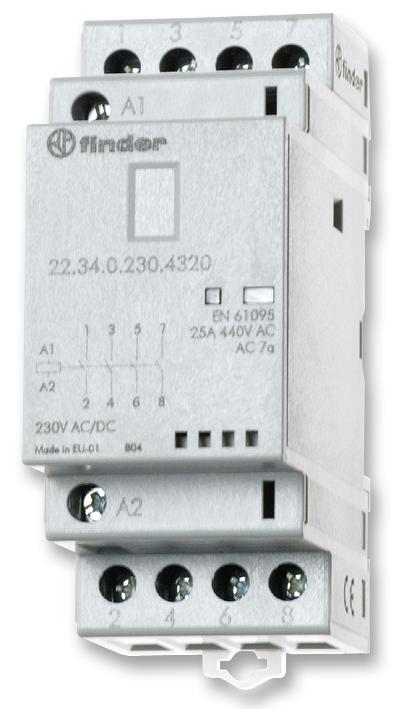

FINDER 223402304320 Modular Power Contactor
This power contactor features a coil voltage of 230 VAC/VDC with a contact configuration of 4 normally open poles. It supports a current rating of 25 Amps and is designed for DIN rail mounting. The contact gap is 3 mm for NO contacts and greater than 1.5 mm for NC contacts, with reinforced insulation between coil and contacts for enhanced safety. It offers continuous duty operation, mechanical and LED indicators, and an optional Auto-On-Off selector. Suitable for resistive, inductive loads, and motor applications, it complies with EN 61095: 2009 standards, ensuring reliable performance.
FINDER 223402304320 Modular Power Contactor Specifications:
- Rated current: 25 A
- Rated voltage: 250 / 440 VAC
- Rated load: 6,250 VA (AC1 / AC7a)
- Rated current AC3 / AC-7b: 10 A
- Rated load AC15: 1,800 VA (per pole @ 230 V)
- Mechanical life: 2-10^8 cycles
- Electrical life at rated load: 30-10^4 cycles
- Operate/release time: 30/20 ms
- Coil voltage: 230 VAC / VDC with rated power of 2 VA
- Coil operating range: (0.8...1.1) Un
- Holding voltage: 0.4 Un
- Protection category: 1P20
- Insulation: Reinforced separation between coil and contacts, dielectric strength 4,000 VAC
- Contact gap: 3 mm for NO, >1.5 mm for NC
- Ambient temperature: -20°C to +50°C
- Approvals: EN 61095: 2009
- Mounting: 35 mm DIN rail (EN 60715)
Buy the Finder Series 22 Contactors 25A: 223402304320
Order the Finder Series 22 power contactor with 25A current rating and 4 NO poles online today. Designed for DIN rail installation, it features reinforced insulation, LED indicators, and optional auto-on-off functionality. Ideal for controlling resistive and inductive loads and supporting high inrush currents, this contactor ensures reliable operation with a compact size. Its mechanical and electrical life span guarantees long-term durability, making it perfect for automation and industrial control systems. Purchase now to ensure seamless operation and dependable switching in your projects.
Buy Finder Series 22 contactor 223402304320 now and experience unmatched reliability and performance in industrial switching applications.
Frequently Asked Questions
Where can I buy FINDER 223402304320?
You can click on the BUY or RFQ button to purchase 223402304320 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 223402304320?
You can download the 223402304320 datasheet or visit the FINDER website for support.
Who is the manufacturer of 223402304320?
FINDER
