FINDER 553281200040 General Purpose Relay

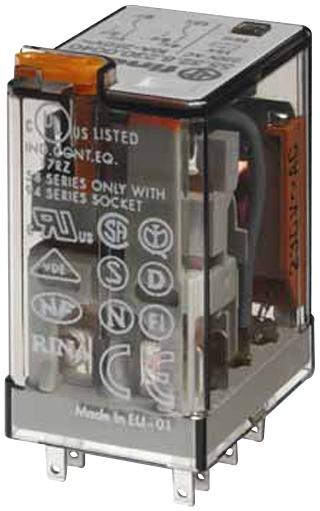

The plug-in mount general-purpose relay features an AC coil and is part of the 55 series. It is equipped with two change-over contacts (DPDT) made of cadmium-free silver-nickel (AgNi) contacts. The relay includes a lockable test button with a mechanical indicator for easy operation and testing. Suitable for use with 94-series sockets, it is protected against dust (RT I standard) and offers coil EMC suppression. The relay operates effectively within a temperature range of -40°C to 85°C and is covered by European patent protection. Ideal for industrial applications.
FINDER 553281200040 General Purpose Relay Specifications:
- Rated voltage: 230/400 VAC
- Rated current: 10A/20A
- Rated load: 2500 VA (AC), 500 VA (AC15)
- Contact configuration: 2CO (DPDT)
- Contact material: Cadmium-free silver-nickel (AgNi)
- Dielectric strength between open contacts: 1000 VAC
- Insulation: Basic type, pollution degree 2
- Mechanical life: 20-108 cycles
- Electrical life at rated load: 200-10^7 cycles
- Operating temperature range: -40°C to +85°C
- Enclosure standard: RT I dust protection
- Coil voltage options: 6V to 240V AC/DC
- Coil power consumption: 15 VA (AC), 1 W (DC)
- Insulation between coil and contacts: 4 kV
- Shock resistance: 16g
- Vibration resistance: 15/15 g
Buy the Finder Series 55 General Purpose Relay: 553281200040
Enhance your industrial automation with the reliable Finder General Purpose Relay. Featuring cadmium-free contacts, lockable test button, robust design, and operate within -40°C to 85°C, it's ideal for control panels and automation systems. Compatible with 94 series sockets, it ensures seamless installation and operation. Its high dielectric strength and UL listing assure safety and durability. Perfect for demanding environments, this relay delivers consistent switching performance, long electrical life, and efficient coil operation. Order online now to get quick delivery and technical support.
Buy Finder 553281200040 now and experience unmatched reliability and performance for industrial control & automation tasks.
Frequently Asked Questions
Where can I buy FINDER 553281200040?
You can click on the BUY or RFQ button to purchase 553281200040 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 553281200040?
You can download the 553281200040 datasheet or visit the FINDER website for support.
Who is the manufacturer of 553281200040?
FINDER
