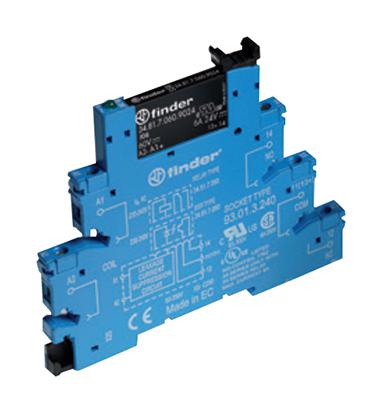

FINDER 388170068240 Relay Interface Module
The 38 Series relay interface modules are designed for seamless integration with PLC and electronic control systems, offering electromechanical and solid-state options. Available in 6.2 mm and 14 mm widths, these modules support various coil voltages, including DC and AC/DC versions, with screw or screwless terminals for easy wiring. They feature high switching capacity, long electrical life, and built-in coil indication and protection circuits. Suitable for automation, control panels, traffic lights, vending machines, and packaging equipment, they provide reliable switching for industrial applications.
FINDER 388170068240 Relay Interface Module Specifications:
- Module Widths: 6.2 mm, 14 mm
- Input Voltage: 6V, 12V, 24V, 48V, 60V, 110V, 125V, 220V, 240V AC/DC
- Output Type: Electromechanical relay (6A, 16A), Solid-state relay (various options)
- Maximum Switching Voltage: 250V AC/DC
- Rated Currents: 6A, 8A, 16A depending on model
- Contacts: SPST-NO, DPDT, AgNi contact material
- Insulation: According to EN 61810-1, Rated Voltage 250/400 VAC, impulse withstand voltage 4kV
- Temperature Range: -40°C to +70°C
- Mounting: 35 mm rail (EN 60715)
- Terminals: Screw or screwless options, wire strip length 10 mm
- Electrical Life: Up to 10^8 cycles
- Certifications: UL Listed (certain models), CE, RINA
- Features: Built-in coil indication, leakage current suppression, instant relay ejection
Buy the Finder Series 38 relay interface: 388170068240
Purchase the Finder 388170068240 relay interface module online today and enhance your automation systems with reliable switching, easy wiring options, and long-lasting performance. Designed for seamless integration with PLCs, this module supports various voltages and features high switching capacity, built-in coil protection, and versatile mounting options, making it ideal for traffic lights, vending machines, packaging, and control panels to ensure efficient and dependable operation.
Buy Finder 388170068240 relay interface modules now and experience unmatched reliability and performance for industrial automation and control systems.
