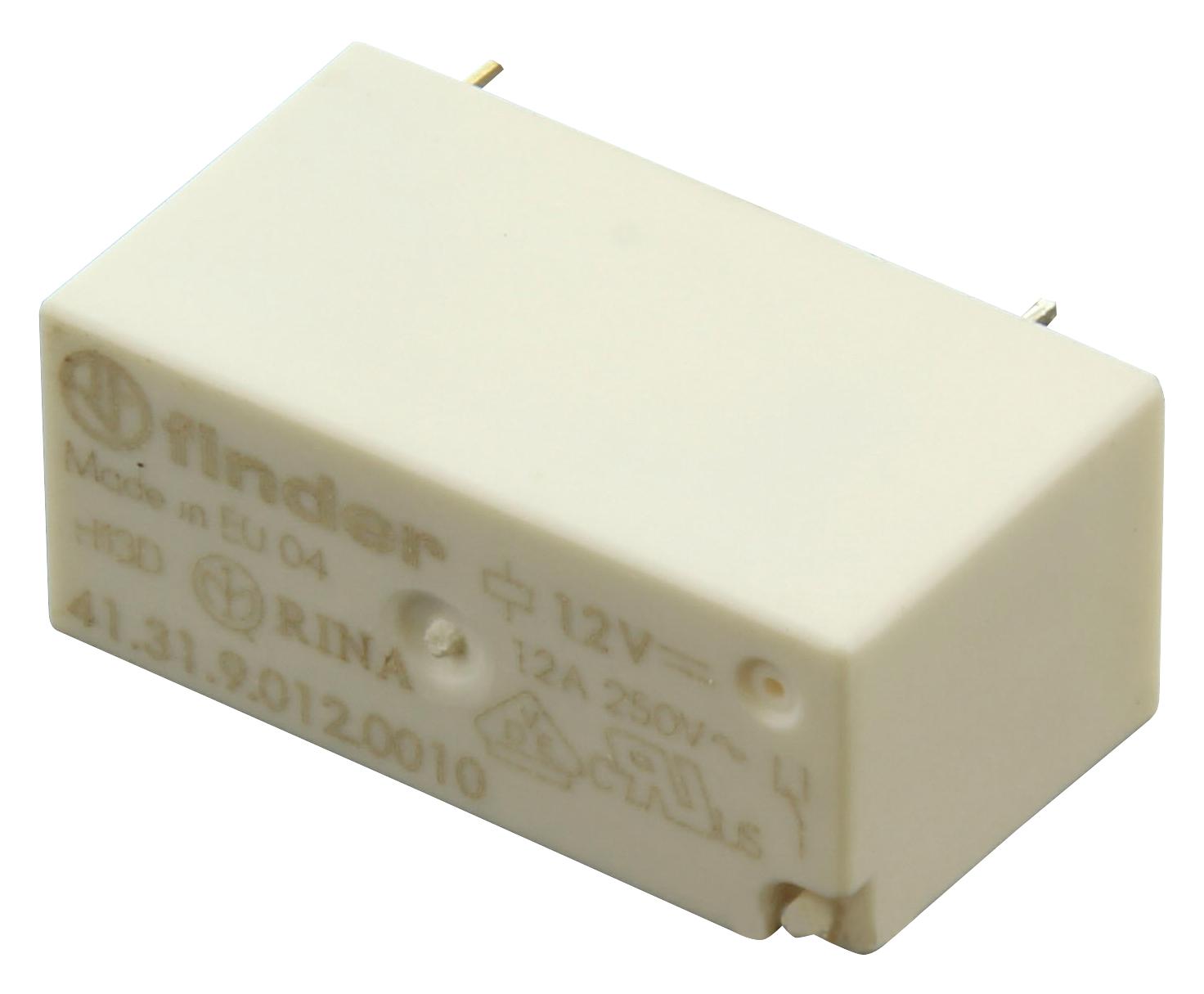

FINDER 413190120010 Low Profile Power Relay
The Finder 41 series electromechanical relays are low-profile PCB relays designed for space-constrained applications. With a maximum height of 15.7mm, they are ideal for miniature equipment in industrial automation and power management. Various models support 8A, 12A, or 16A at 250VAC, featuring flux-proof RT II and wash-tight RT III versions. These relays accommodate both AC and DC coils, with cadmium-free contacts for environmental safety. Mountable on 35mm DIN rails via screw or screwless sockets, they ensure high electrical isolation of 6kV and reliable switching in control systems.
FINDER 413190120010 Low Profile Power Relay Specifications:
- Maximum height: 15.7 mm
- Contact configurations: SPDT, DPDT
- Rated current: 8A, 12A, 16A at 250 VAC
- Isolation voltage: 6 kV (creepage and clearance)
- Contact pitch: 3.5mm or 5mm
- Mounting options: PCB direct, PCB socket, 35mm DIN rail with screw or screwless sockets
- Coil voltage: 24-230 VAC/DC
- Coil power: 400mW
- Contact materials: Cadmium-free, flux-proof RT II, wash-tight RT III
- Insulation: 6mm reinforced (8mm for some models)
- Environmental: RTI standard, temperature range -40°C to +85°C
- Endurance: Mechanical life 10^8 cycles, electrical load at rated current
- Approval standards: UL, CSA, IEC
Buy the Finder 413190120010 – Reliable Power Switching for Industrial Applications
Secure your industrial automation needs with the Finder Low Profile Power Relay. Featuring high electrical isolation of 6kV, cadmium-free contacts, and a compact height of only 15.7mm, it’s ideal for space-constrained applications. Suitable for both AC and DC coils, with models supporting 8A, 12A, or 16A at 250VAC, it offers reliable switching performance. Mountable on standard 35mm DIN rails, it provides robust control for power management, process automation, and safety systems. Available for online purchase, ensuring quick delivery and dependable operation.
Buy Finder 413190120010 now and experience unmatched reliability and performance in industrial automation and power control.
