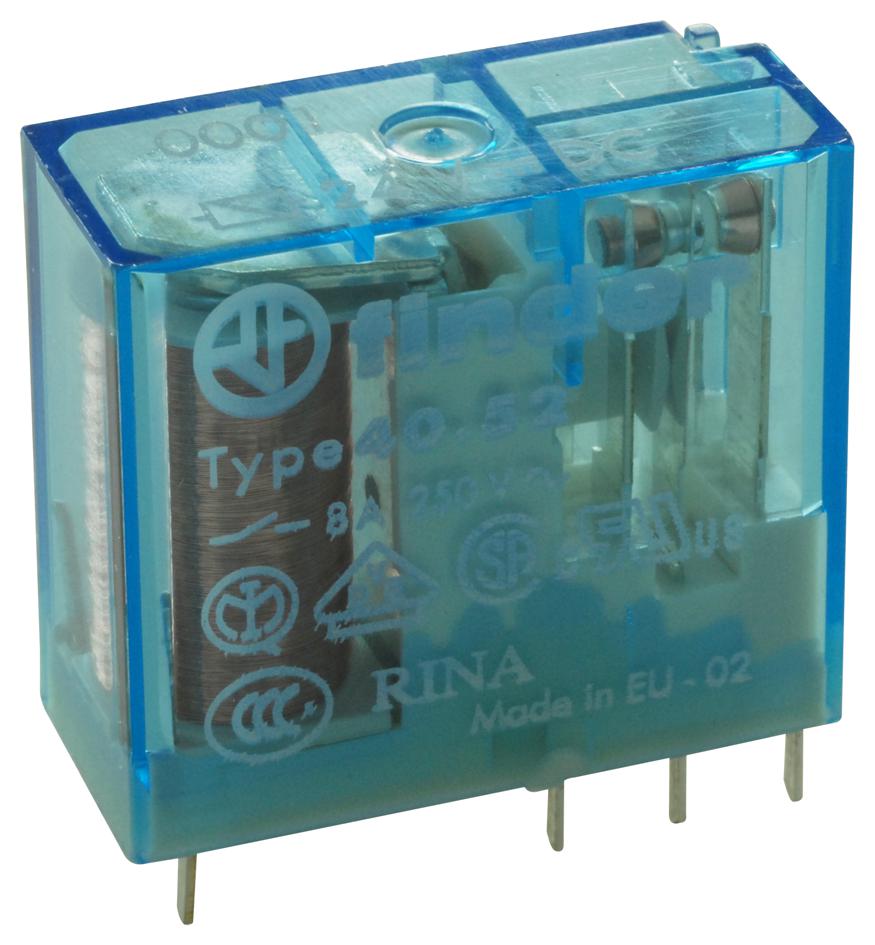

FINDER 405290240001 Industrial Control Relay
The 40 series miniature relay offers reliable PCB and plug-in mounting options with a cadmium-free AgNi contact material for durability. It features a 5mm contact pin pitch, two changeover contacts (DPDT), and is compatible with 95-series sockets. The relay is equipped with coil EMC suppression and has an IP66 wash-tight RT III protection rating, making it suitable for demanding industrial environments. Designed for wide temperature operation from -40°C to 85°C, it supports both DC and AC coils with a standard power of 0.65W, ensuring efficient performance in automation and control systems.
FINDER 405290240001 Industrial Control Relay Specifications:
- Mounting: PCB and plug-in options with 95-series sockets
- Contact Material: Cadmium-Free AgNi
- Contact Configuration: 2 Changeover (DPDT)
- Pin Pitch: 5 mm
- Rated Current: 10 A (40.31/40.51/40.52), 16 A (40.61)
- Switching Voltage: Up to 250 V AC, Up to 400 V AC
- Coil Power: 0.65 W (standard)
- Coil Voltage Range: 5 V to 125 V DC; 6 V to 230 V AC
- Isolation: 8 mm, 6 kV (coil-contacts)
- Protection Rating: IP66 wash-tight, RT III
- Operating Temperature: -40°C to 85°C
- Insulation: Reinforced (8 mm)
- Dielectric Strength: 4,000 V AC between coil and contacts
- Electrical Life: 100,000 cycles at rated load
- Mechanical Life: 10 million cycles
Buy the Finder 405290240001 – Reliable Industrial Relay for Automation Applications
Enhance your automation projects with this high-quality industrial relay featuring cadmium-free contacts, IP66 wash-tight protection, and a versatile 5mm pin pitch. Compatible with 95-series sockets, it offers reliable DPDT switching, supporting up to 16A load current and a wide temperature range from -40°C to 85°C. Designed to deliver long-lasting performance, this relay is ideal for demanding industrial environments where durability and safety are critical. Purchase online today for fast delivery and trustworthy operation.
Order your Finder 405290240001 relay today and give your industrial control systems the dependable performance they need with high durability and wide operational temperature range.
Frequently Asked Questions
Where can I buy FINDER 405290240001?
You can click on the BUY or RFQ button to purchase 405290240001 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 405290240001?
You can download the 405290240001 datasheet or visit the FINDER website for support.
Who is the manufacturer of 405290240001?
FINDER
