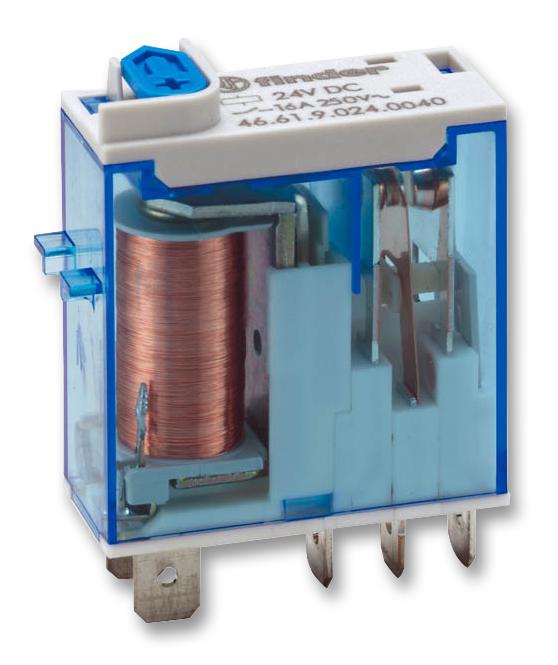

FINDER 466182300054 Industrial Power Relay
The 46 Series industrial power relays are designed for socket mount or direct connection via Faston connectors, suitable for both AC and DC coils. They feature cadmium-free contacts, high isolation voltage of 6 KV, and come with options like lockable test buttons, mechanical and LED indicators. These relays support various configurations, including single and double poles, with rated currents up to 16A and switching voltages up to 440 VAC. They are suitable for control applications, mechanical indication, and EMC suppression modules, with robust insulation and environmental ratings for industrial environments.
FINDER 466182300054 Industrial Power Relay Specifications:
- Contact Configuration: 2 CO (DPDT), 1 CO (SPDT)
- Rated Current: 8 A (2 CO), 16 A (1 CO)
- Maximum Switching Voltage: 250/440 VAC
- Rated Load: 2000 VA (AC1), 350 VA (AC15)
- Coil Voltage: 12-24-48-110-120-230-240 V AC, 12-24-48-110-125 V DC
- Rated Power: 1.2/0.5 VA (AC), 1.2/0.5 W (DC)
- Insulation Voltage: 6 KV between coil and contacts
- Dielectric Strength: 4000 VAC between coil and contacts, 1000 VAC between open contacts
- Mechanical Life: 10^8 cycles, Electrical Life: up to 10^6 cycles at rated load
- Operating Temperature Range: -40°C to +70°C
- Environmental Protection: RTI, IP20
- Dimensions: Suitable for 35 mm rail (EN 60715), socket mounting options available
- Certifications: CE, UL Ratings applicable
- Additional features include EMC suppression modules, optional mounting adaptors, and plug-in/solder terminals
Buy the Buy Industrial Power Relays Part Number 466182300054 Online
Order the industrial power relay Part Number 466182300054 online today for dependable performance in control systems. With features such as cadmium-free contacts, high voltage isolation, and options like lockable test buttons and LED indicators, this relay is ideal for automation and industrial applications. Its robust insulation, environmental ratings, and mounting versatility ensure seamless integration into your control panel. Shop now to ensure efficient operation, quick installation, and long-term reliability for your industrial automation needs.
Buy industrial power relays from our trusted selection including Part Number 466182300054 and experience reliable control for automation applications.
Frequently Asked Questions
Where can I buy FINDER 466182300054?
You can click on the BUY or RFQ button to purchase 466182300054 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 466182300054?
You can download the 466182300054 datasheet or visit the FINDER website for support.
Who is the manufacturer of 466182300054?
FINDER
