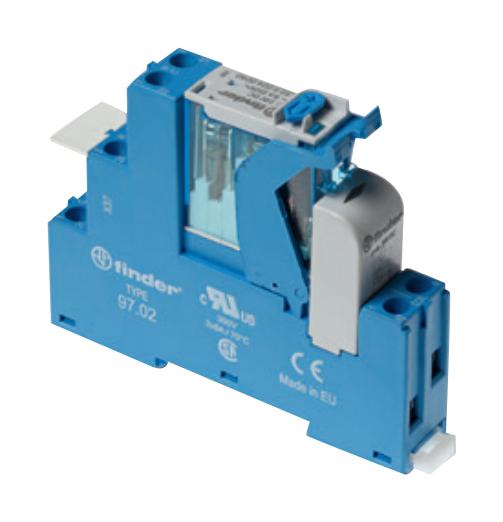

FINDER 4C0281100060SPA Industrial Relay Module
The relay interface modules are designed for industrial automation, featuring push-in and screw terminals, ideal for PLC integration. Available in various configurations, these modules support AC and DC coils, with rated currents up to 16A and contact ratings up to 10A or 16A at 250VAC. They feature supply status indication, coil suppression, and UL listing, ensuring safety and reliability. The modules are compact, mounting on 35 mm rails (EN 60715), suited for control panels. They include multiple coil voltage options, long mechanical and electrical life, and high dielectric strength, making them suitable for demanding industrial environments.
FINDER 4C0281100060SPA Industrial Relay Module Specifications:
- Contact configuration: 1 CO (SPDT), 2 CO (DPDT)
- Rated current: 8A to 16A
- Maximum peak current: 15/25A
- Rated voltage: 250/440 VAC
- Rated load: 2000 to 4000 VA
- Coil voltage: 12V, 24V, 110V, 120V, 230V AC/DC
- Coil power consumption: 12/05 VA, 1.2/1.0 W
- Insulation: 6 kV between coil and contacts
- Dielectric strength: 1000 VAC open contacts
- Mechanical life: 10^8 cycles
- Electrical life at rated load: 100,000 cycles
- Operating temperature: -40°C to +70°C
- Protection category: IP20
- Mounting: 35 mm rail (EN 60715)
- Certifications: UL Listed, CE compliant
- Material: AgNi contact material
- Minimum switching load: 300 mW
- Vibration resistance: 20/12 g
Buy the FINDER 4C0281100060SPA – Reliable Industrial Relay Interface for Automation
Order the FINDER industrial relay module online today—engineered for reliability and efficiency in control systems. Featuring versatile AC/DC coil options, high current capacity up to 16A, and UL listing, this compact module supports PLCs and electronic systems. Easy to install on 35 mm rails with push-in or screw terminals, ensuring quick setup and maintenance. Its durable design withstands harsh industrial environments, providing long electrical and mechanical life. Upgrade your automation system with this high-performance relay module for optimal control and safety.
Get FINDER 4C0281100060SPA today—built for precision, long-lasting durability, and seamless PLC integration.
Frequently Asked Questions
Where can I buy FINDER 4C0281100060SPA?
You can click on the BUY or RFQ button to purchase 4C0281100060SPA from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 4C0281100060SPA?
You can download the 4C0281100060SPA datasheet or visit the FINDER website for support.
Who is the manufacturer of 4C0281100060SPA?
FINDER
