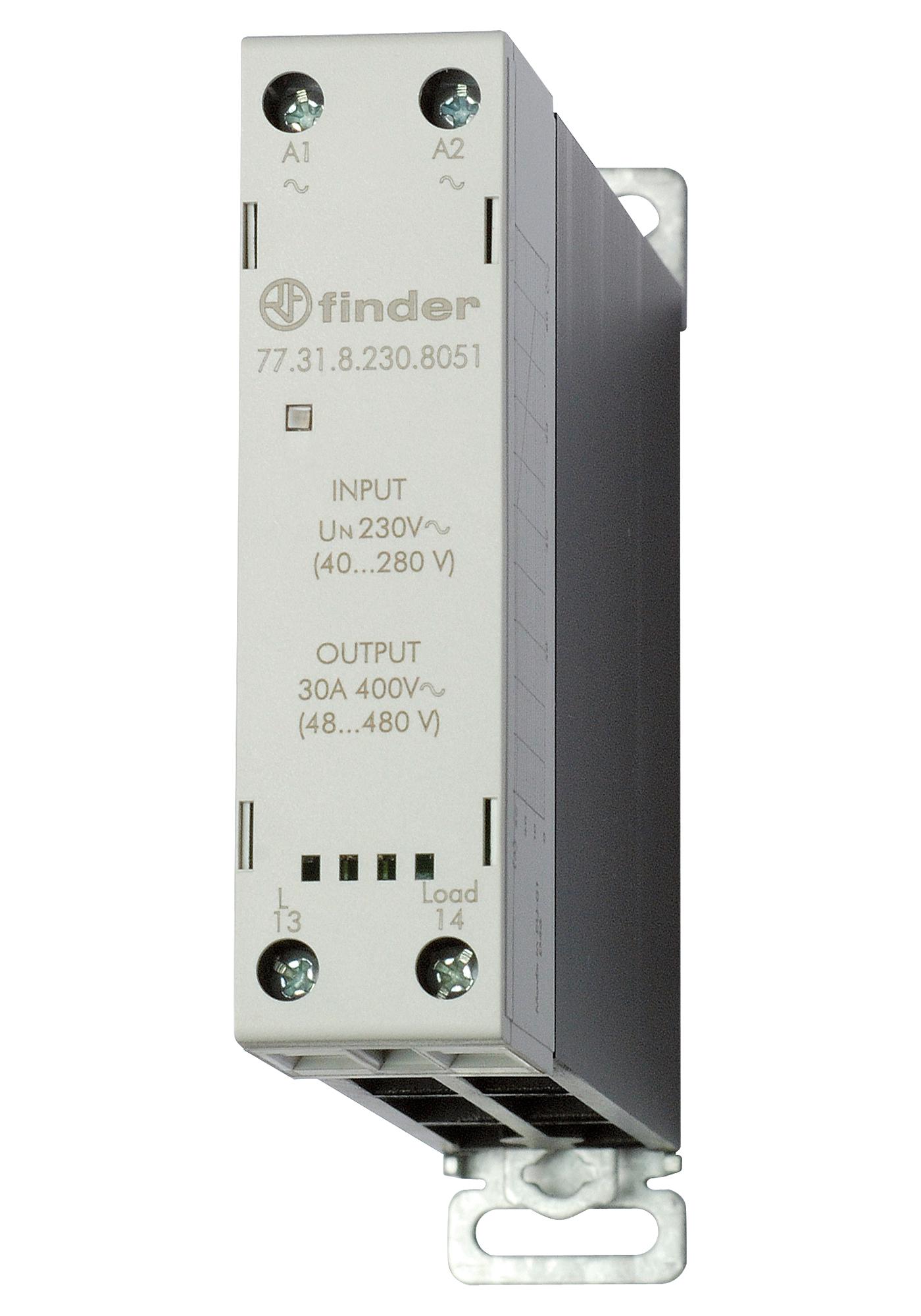

FINDER 773190248070 Solid State Relay
The 77 Series solid state relays are designed for high-performance switching applications with current ratings of 5, 15, 30, and 50A. Featuring zero-crossing and random switch-on options, these relays excel in reducing inrush current, minimizing electrical noise, and providing silent operation. Suitable for controlling motors, heaters, solenoids, and electronic devices, they boast high endurance, fast switching speeds, and reliable insulation. The relays are mounted easily on heatsinks or DIN rails, with various configurations supporting diverse industrial automation requirements.
FINDER 773190248070 Solid State Relay Specifications:
- Rated current: 5A, 15A, 30A, 50A
- Rated voltage: 24V DC to 600V AC
- Insulation voltage: 4kV to 6kV (depending on model)
- Switching voltage range: 21.6V to 660V AC / 24V to 32V DC
- Repetitive peak off-state voltage: 600V to 1200V
- Off-state leakage current: 1-10mA
- Operate/release time: <10ms to 80ms depending on model
- Ambient temperature: -30°C to +80°C
- Protection category: IP 20
- Mounting options: heatsink, DIN rail, panel mounting
- Isolation between input and output: 4kV to 6kV
- Mechanical endurance: 10^10 cycles
- Approval standards: CE, UL, IEC
Buy the FINDER Series 77 Solid State Relay: 773190248070
Order the FINDER 773190248070 solid state relay online today to ensure seamless control of your industrial automation needs. With current ratings up to 50A, these relays provide silent, high-speed switching and reliable insulation. Perfect for motor control, heater management, and solenoid switching, they are designed for long-lasting performance and easy installation on heatsinks or DIN rails. Get yours now and optimize your automation systems with trusted technology that guarantees durability and efficiency.
Buy FINDER 773190248070 now and experience unmatched reliability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy FINDER 773190248070?
You can click on the BUY or RFQ button to purchase 773190248070 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 773190248070?
You can download the 773190248070 datasheet or visit the FINDER website for support.
Who is the manufacturer of 773190248070?
FINDER
