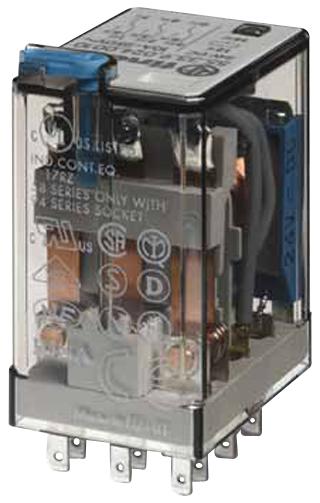

FINDER 553381200010 General Purpose Relay
The 55.33.8.120.0010 is a three-pole, plug-in type general-purpose relay featuring cadmium-free silver nickel contacts and a 3PDT configuration. It includes an AC coil (50/60Hz) designed for industrial applications, supporting a rated load of 2500VA and 500VA. Suitable for switching single-phase motors up to 0.37kW at 230VAC, it features a lockable test button, plug-in 94 series sockets, and robust insulation (4kV). The relay ensures high dielectric strength (1000VAC) between open contacts and coil-contact insulation rated at 4kV, making it reliable for demanding control circuits.
FINDER 553381200010 General Purpose Relay Specifications:
- Contact configuration: 3PDT (three-pole double-throw)
- Rated current: 10/20 A
- Maximum switching voltage: 250/400 VAC
- Rated load AC1: 2500 VA
- Rated load AC15 at 230V AC: 500 VA
- Single phase motor rating: 0.37kW (230VAC)
- Switching capacity: 5V/5mA (300mW) minimum load
- Insulation between coil and contacts: 4 kV (1.2/50μs)
- Dielectric strength between open contacts: 1000 VAC
- Coil voltage: AC 50/60Hz, various options
- Rated coil power: 1 VA
- Operating temperature range: -40°C to +85°C
- Electrical life at rated load: 200,000 cycles
- Mechanical life: 20 million operations
- Enclosure: Designed for plug-in sockets, UL listed
- Construction: Cadmium-free silver nickel contacts, robust insulation
Buy the Buy Finder Relay Part Number 553381200010 Online
Order the Finder general purpose relay 553381200010 online today for your automation and industrial control projects. This three-pole, plug-in relay features cadmium-free silver nickel contacts, supporting a load of 2500VA, ideal for switching single-phase motors up to 0.37kW at 230VAC. It offers a lockable test button, durable insulation rated at 4kV, and robust UL-listed plug-in sockets, ensuring high reliability and safety. Perfect for demanding control circuits requiring long-lasting, high-performance relays. Purchase now for seamless integration into your automation systems and enjoy prompt delivery direct from trusted distributors.
Get Finder relay 553381200010 today—built for industrial control and motor switching with reliable cadmium-free contacts and robust insulation.
Frequently Asked Questions
Where can I buy FINDER 553381200010?
You can click on the BUY or RFQ button to purchase 553381200010 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 553381200010?
You can download the 553381200010 datasheet or visit the FINDER website for support.
Who is the manufacturer of 553381200010?
FINDER
