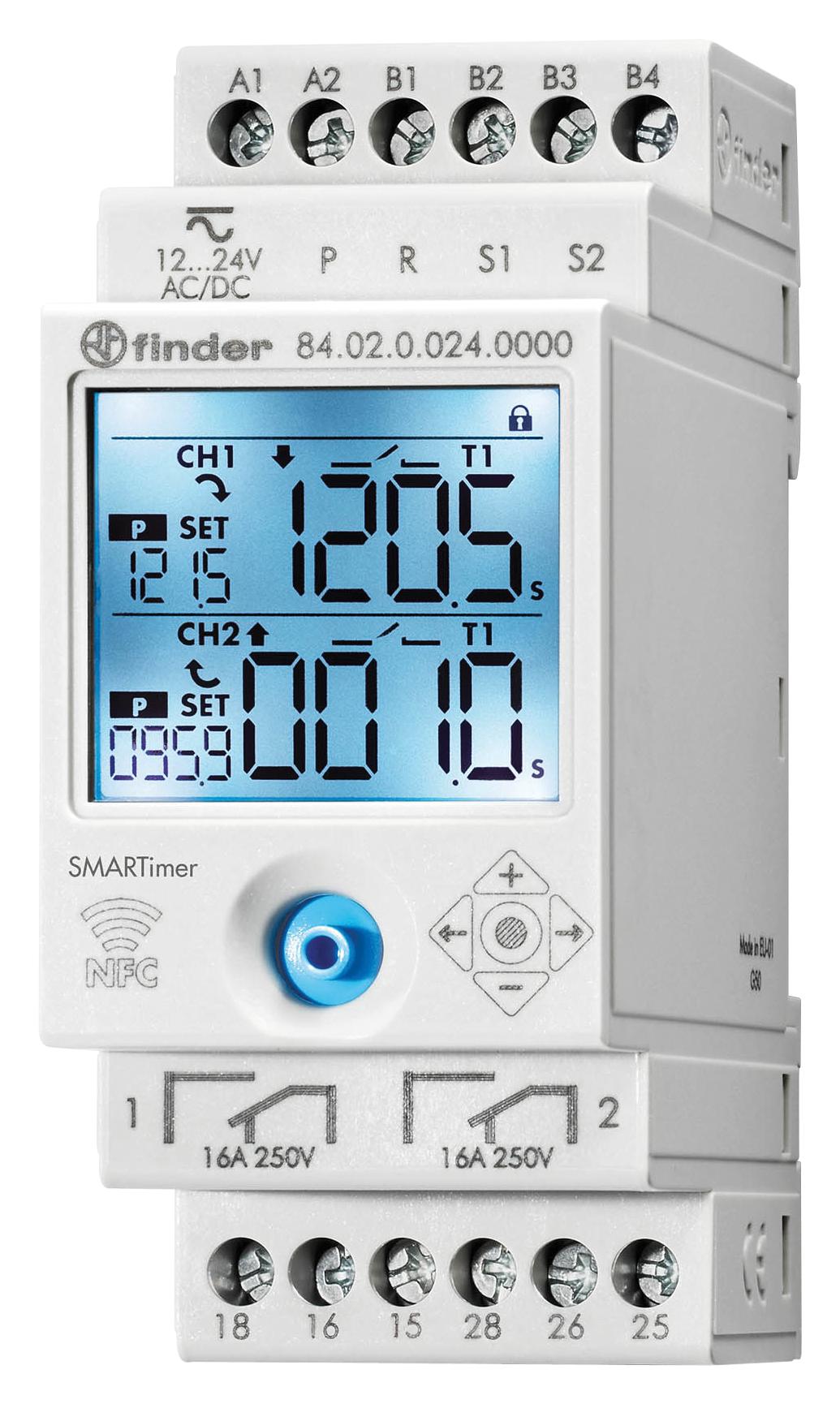

FINDER 840202300000 Multi-function Timer
This device features two independent programmable channels, each supporting 'Smart' mode via NFC smartphone communication or 'Classic' mode via joystick. It offers a wide backlit display for intuitive reading of set and current times, timing status, and input/output states. Users can create customized functions by mixing 25 available options per channel, with high precision and flexible time settings ranging from 0.1 seconds to 9999 hours. Two start inputs, a shared reset, and pause input enhance versatility. PIN protection secures programming, with 'Up' and 'Down' timing modes for comprehensive control, suitable for automation and industrial applications.
FINDER 840202300000 Multi-function Timer Specifications:
- Channels: 2 independent programmable channels
- Programming modes: NFC smartphone with Finder Toolbox, joystick (Classic mode)
- Display: Wide backlit display for easy reading during operation
- Function options: 25 customizable functions per channel
- Time range: 0.1 seconds to 9999 hours, set with four digits
- Timing modes: Up and Down modes available
- Inputs: Two start inputs (one per channel), shared reset and pause inputs
- PIN protection: Yes for programming security
- Supply voltage: 12-24V AC/DC or 110-240V AC/DC (not polarized)
- Output contacts: 16A, 2 CO DPDT configuration, rated at 250/400 VAC
- Dimensions: Standard DIN rail mounting
- Additional features: High timing precision, flexible function mixing, multi-mode control, suitable for industrial automation
Buy the Finder Series SMARTimer: 840202300000
Order the Finder SMARTimer 840202300000 online today to take advantage of its dual-channel programmable capability, NFC and joystick operation modes, and a large clear display. This timer supports customizable functions, precise timing from 0.1 seconds to 9999 hours, and secure PIN protection for programming. Ideal for automation, it features two start inputs, shared reset and pause, and high-rated 16A contacts suitable for various industrial loads. Simplify your control systems by purchasing this highly flexible and reliable digital timer online now.
Buy Finder SMARTimer 840202300000 now and experience unmatched reliability and versatile timing functions in industrial automation.
Frequently Asked Questions
Where can I buy FINDER 840202300000?
You can click on the BUY or RFQ button to purchase 840202300000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 840202300000?
You can download the 840202300000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 840202300000?
FINDER
