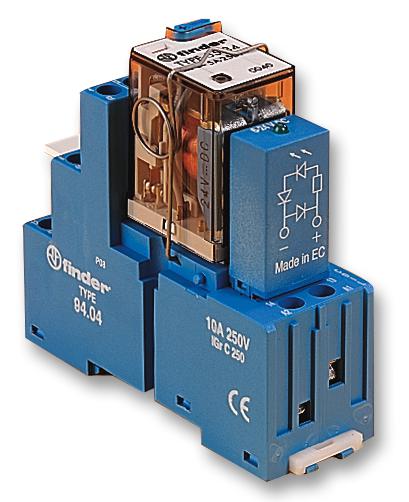

FINDER 583482300060SMA Relay Interface Module
The relay interface modules in the 58 Series are designed for versatile industrial automation use, offering 2, 3, and 4 pole configurations with ratings of 10 A and 7 A. These modules feature 35 mm rail mounting, AC or DC coils, and are compliant with IEC standards for insulation and dielectric strength. They include integrated coil suppression, supply status indication, and cadmium-free contacts, suitable for controlling resistive and inductive loads in PLC and electronic systems, enabling reliable switching with a compact, modular design.
FINDER 583482300060SMA Relay Interface Module Specifications:
- Number of Poles: 2, 3, 4
- Rated Current: 10 A for 2 and 3 poles, 7 A for 4 poles
- Coil Voltage Range: 12-24-48-110-120-230 VAC/DC
- Mounting: 35 mm DIN rail EN 50022
- Contact Material: Silver Nickel (AgNi)
- Insulation Rated Voltage: 250 - 400 V
- Dielectric Strength: 1,000 VAC between contacts, 3.6 kV impulse withstand
- Mechanical Life: 0 - 10^6 cycles
- Electrical Life at Rated Load: 150 - 200 x 10^3 cycles
- Operating Temperature Range: -40°C to +70°C
- Protection Class: IP 20
- Certifications: UL Listed, IEC standards compliance
- Additional Features: Coil suppression, supply indicator, cadmium-free contacts
Buy the Finder Series 58 Relay Interface Module: 583482300060SMA
Upgrade your control systems with the Finder Series 58 relay interface module, featuring 2, 3, and 4 pole setups with ratings of up to 10 A. Designed for DIN rail mounting, these modules support AC and DC coils, ensuring flexible integration into PLC and electronic systems. They incorporate coil suppression, supply indication, and cadmium-free contacts for added safety and durability. Perfect for industrial automation, these modules provide reliable switching with compact, modular design, meeting industrial standards for safety and performance. Purchase online now for seamless deployment.
Order your Finder Series 58 relay interface module with 4 poles and 24 V DC coil today and enhance the reliability and efficiency of your automation projects.
Frequently Asked Questions
Where can I buy FINDER 583482300060SMA?
You can click on the BUY or RFQ button to purchase 583482300060SMA from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 583482300060SMA?
You can download the 583482300060SMA datasheet or visit the FINDER website for support.
Who is the manufacturer of 583482300060SMA?
FINDER
