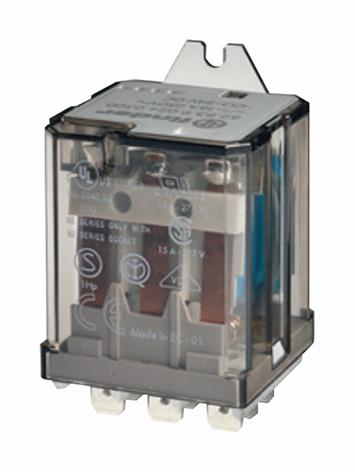

FINDER 628280240300 Power Relay
The Finder 62.82.8.024.0300 is a robust and versatile power relay designed for industrial applications. With a 16A rating and options for both AC and DC coils, this relay provides reliable switching capabilities. Its reinforced insulation ensures safety, while the cadmium-free contact material aligns with environmental regulations. The plug-in design simplifies installation and maintenance, making it a suitable choice for control panels, industrial automation, and power management systems. It is suitable for road/tunnel lighting, industrial furnaces, burners, boilers, and control panels.
FINDER 628280240300 Power Relay Specifications:
- Rated Current: 16A
- Maximum Peak Current: 120A
- Rated Voltage: 250V AC / 400V
- Rated Load AC1: 4000 VA
- Rated Load AC15 (230 V AC): 750 VA
- Motor Rating (230/400 V AC): 0.8/1.5 kW
- Breaking Capacity DC1: 16/0.6/0.4 A
- Minimum Switching Load: 1000 mW (10/10)
- Contact Material: AgCdO
- Coil Voltage: 6-400V AC / 6-220V DC
- Mechanical Life: 10 * 10^6 cycles
- Electrical Life: 100 * 10^3 cycles
- Operate/Release Time: 11/4 ms
- Insulation Between Coil and Contacts: 6 kV
- Ambient Temperature Range: -40…+70 °C
