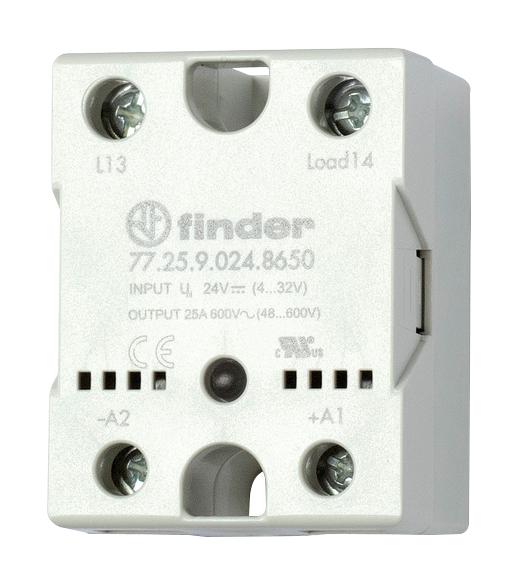

FINDER 774582308650 Modular Solid State Relay
The 77 series modular solid state relays are designed for high-speed switching applications in energy management and automation. Available in various current ratings from 5A to 50A, these relays feature zero-crossing and random switch-on options for silent, bounce-free operation. They are equipped with relay-style terminals, mounting on heatsinks, and are suitable for controlling motors, heaters, and electromagnetic valves. With insulation up to 6kV, they comply with EMC standards, ensuring reliable and efficient performance in industrial environments.
FINDER 774582308650 Modular Solid State Relay Specifications:
- Rated current: 5A, 15A, 30A, 50A
- Rated voltage: 24V AC to 600V AC
- Switching voltage range: 21.6-660V AC
- Repetitive peak off-state voltage: 800-1200V
- Insulation: 6kV (1.2/50 µs)
- Ambient temperature: -20°C to +80°C
- Control power: 0.4W to 7.5W
- Operating frequency: 10-108 cycles
- Operate/release times: 0.05-80 ms
- Protection: IP 20
- Mounting: 35mm DIN rail or panel with heatsink
- Compliance: EMC standards, UL, CE approvals
Buy the Buy Finder 77 Series Modular Solid State Relay Part Number 774582308650 Online
Enhance your automation setup with the Finder 77 series modular solid state relay. Designed for high endurance and silent operation, it provides swift switching capabilities suitable for motors, heaters, and valves. Available in various current ratings from 5A up to 50A, these relays feature reliable insulation, EMC compliance, and mounting on heatsinks for optimal thermal management. Purchase online today and improve control efficiency, safety, and performance in your industrial and energy applications with our trusted relay solutions.
Order your Finder 77 series high-current modular relay today and ensure dependable, silent switching for your industrial automation projects.
Frequently Asked Questions
Where can I buy FINDER 774582308650?
You can click on the BUY or RFQ button to purchase 774582308650 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 774582308650?
You can download the 774582308650 datasheet or visit the FINDER website for support.
Who is the manufacturer of 774582308650?
FINDER
