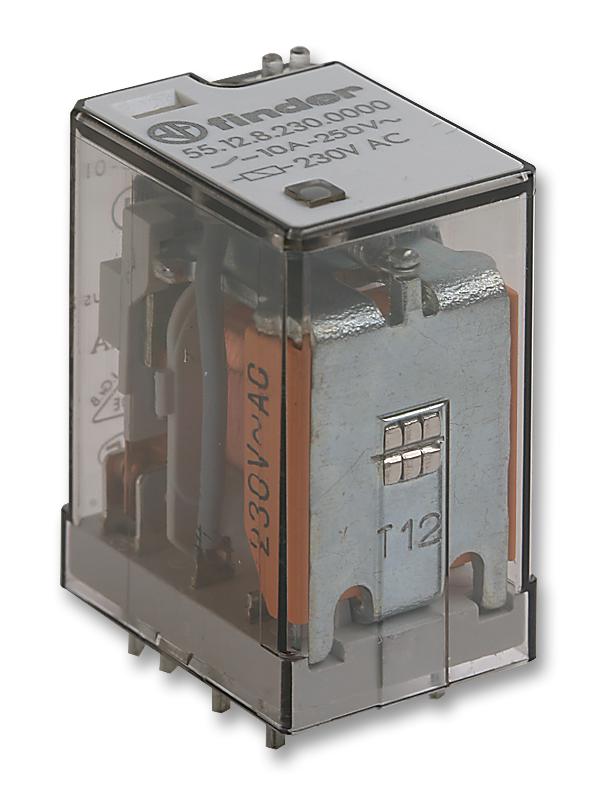

FINDER 551282300000 General Purpose Relay
The relay is a versatile switching device suitable for controlling electrical circuits with a rated current of 7A to 10A. Designed for use in automation, lighting, control panels, and distribution systems, it features various mounting options including screw terminal, PCB socket, and rail mount. With high dielectric strength, IP20 protection, and capable of switching voltages up to 250V AC/DC, it ensures reliable operation in industrial and building automation environments. Suitable for applications such as control of motors, lighting, and power management, it offers quick operation and long-lasting durability.
FINDER 551282300000 General Purpose Relay Specifications:
- Rated values: 10A-250V
- Dielectric strength: 2kVAC
- Protection category: IP20
- Ambient temperature range: -40°C to +70°C
- Max. wire size: 2x1.5 mm² stranded or 2x1.5 mm² solid wire
- Contact configuration: 2CO, 3CO, 4CO
- Rated current: 7A to 10A
- Rated load: VA 1750 to 2500 depending on type
- Insulation: Basic type of insulation, pollution degree 2
- Breaking capacity: 10A at 250VAC, 0.5A at 110VDC
- Coil voltage: 6V to 240V AC/DC
- Coil resistance: 40Ω at 6V AC, 200Ω at 12V AC, 19100Ω at 240V AC
- Operating time (operate/release): 9/5 ms
- Insulation between coil and contacts: 4kV
- Environmental protection: RTI, IP20
- Screw torque: 0.5 Nm
- Wire strip length: 7-8 mm
Buy the Buy Finder 7-10A General Purpose Relay Part Number 551282300000 Online
Experience the reliability and efficiency of Finder's general purpose relay, rated for currents between 7 to 10 amps and voltages up to 250V. Ideal for automation, control panels, lighting, and power management across industrial environments. Its versatile mounting options include screw terminal, PCB socket, and rail mount for flexible integration into various systems. Built with high dielectric strength, IP20 protection, and robust construction, it ensures long-term performance in demanding settings. Easy to install and operate, it offers quick switching with minimal maintenance, making it a valuable component for engineers and technicians seeking durability and precision.
Get Finder 7-10A general purpose relay today—designed for reliable performance and long-lasting durability in industrial and automation applications.
Frequently Asked Questions
Where can I buy FINDER 551282300000?
You can click on the BUY or RFQ button to purchase 551282300000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 551282300000?
You can download the 551282300000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 551282300000?
FINDER
