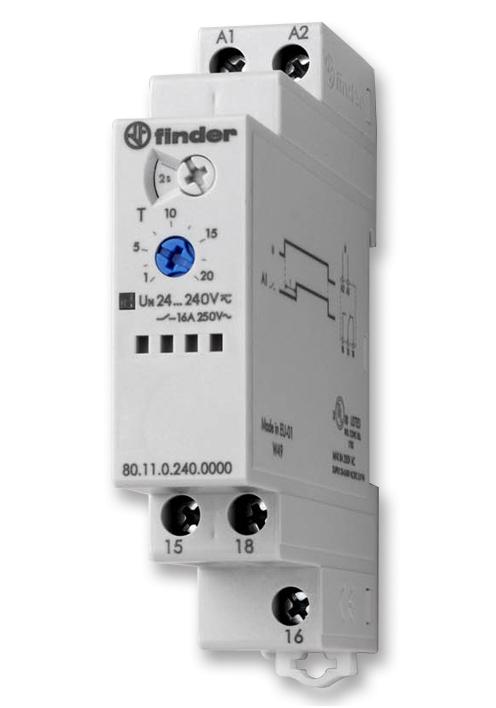

FINDER 801102400000 Multi-Voltage On-Delay Timer
The FINDER 80.11.0.240.0000 is a versatile on-delay timer suitable for a wide range of industrial automation and control applications. It provides precise timing functions with six selectable time scales from 0.1 seconds to 24 hours. The multi-voltage input and output capabilities, combined with high input/output isolation and a compact 35mm rail mount design, make it an ideal solution for various control circuits. The 'Blade + cross' screwdriver compatibility simplifies adjustment and maintenance.
FINDER 801102400000 Multi-Voltage On-Delay Timer Specifications:
- Width: 17.5 mm
- Time Scales: 0.1 s to 24 h
- Input/Output Isolation: High
- Rail Mount: 35 mm (EN 60715)
- Adjustment: Blade + cross screwdriver
- Voltage: Multi-voltage
- Rated Current: 16/30 A
- Maximum Switching Voltage: 400 V
- Rated Load AC1: 4000 VA
- Rated Load AC15 (230 V AC): 750 VA
- Minimum Switching Load: 500 mW (10/5)
- Contact Material: AgNi
- Nominal Voltage (UN) AC: 12…240 V
- Nominal Voltage (UN) DC: 12…240 V
- Rated Power AC/DC: < 1.8/< 1 VA
- Operating Range AC: 10.8…265 V
- Operating Range DC: 10.8…265 V
- Repeatability: ± 1%
- Recovery Time: 100 ms
- Setting Accuracy: ± 5%
