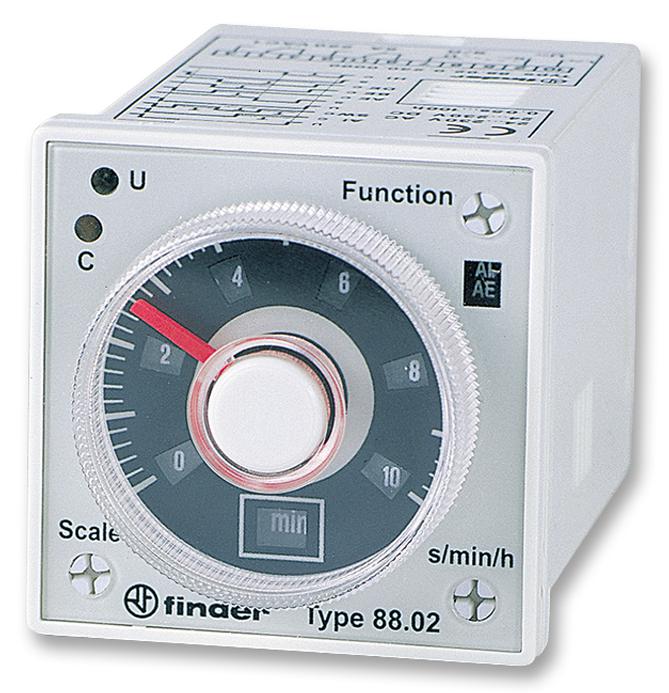

FINDER 880202300002 Industrial Timer
The multi-voltage and multi-function timing relay is designed for industrial automation, featuring adjustable time scales from 0.05 seconds to 100 hours. It offers versatile functions including on-delay, interval, pulse delayed, symmetrical flasher, off-delay with control, and on-and off-delay with control, suitable for controlling motors, heaters, and lighting. The relay provides reliable switching with rated voltages up to 250/400 VAC and current capacity of 8 A. It is housed in a compact, DIN rail or panel-mountable enclosure, with plug-in sockets for easy installation and maintenance, ensuring accurate timing and durability in demanding environments.
FINDER 880202300002 Industrial Timer Specifications:
- Timer functions: On-delay, interval, pulse delayed, symmetrical flasher, off-delay with control, on-and off-delay with control
- Time scales: 0.05 s to 100 hours, depending on model
- Rated voltage: 24 to 230 VAC/DC, operating range 20.4 to 264.5V
- Rated current: 8 A, maximum switching voltage 250/400 VAC
- Contact configuration: DPDT, 20 (DPDT) rated load 2000 VA
- Contact material: AgNi
- Break capacity DC1: 8 A at 30/110/220V
- Mechanical environment: IP 40, ambient temperature -10°C to +45°C
- Supply frequency: 50/60 Hz
- Power consumption: 2.5 VA (230V), 1 W (24V)
- Durability: 100,000 cycles at rated load
- Approval: CE, UL
Buy the Buy Finder Timer Part Number 880202300002 Online
Purchase the Finder industrial timer 880202300002 online today for reliable and precise timing solutions in automated systems. With adjustable timing from 0.05 seconds to 100 hours, it supports a wide range of industrial applications. Designed with robust contacts rated up to 8 A at 250/400 VAC, this versatile relay offers multiple functions including on-delay, interval, pulse delayed, and flashing modes. Its compact DIN rail or panel mountable design ensures easy installation and maintenance, making it ideal for controlling motors, heaters, lighting, and other automation components in demanding environments. Enhance your control system now!
Get Finder timer 880202300002 today—built for precision, durability, and versatile timing control in industrial automation.
Frequently Asked Questions
Where can I buy FINDER 880202300002?
You can click on the BUY or RFQ button to purchase 880202300002 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 880202300002?
You can download the 880202300002 datasheet or visit the FINDER website for support.
Who is the manufacturer of 880202300002?
FINDER
