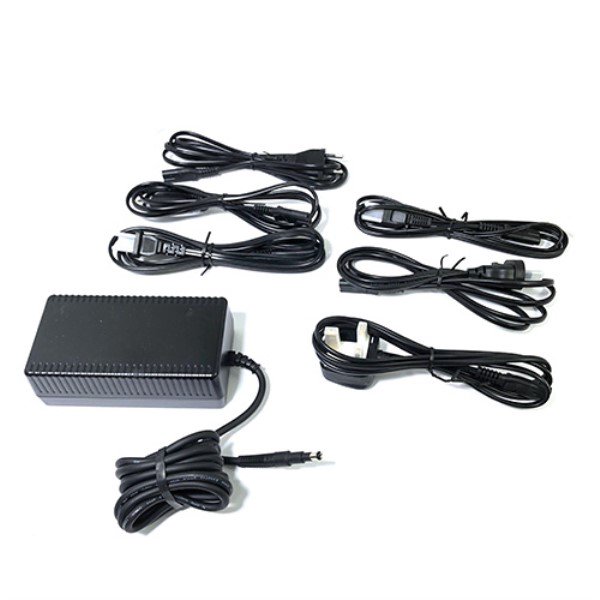

FLUKE 4821057 Universal Mains-Power Adapter
The Fluke BC190/830 Universal Mains-Power Adapter provides a reliable power source for a variety of measurement, control, and laboratory equipment. Based on a switched-mode design, it delivers high efficiency and minimizes standby power consumption, meeting Level VI requirements. Its universal design accommodates input voltages from 100 Vac to 240 Vac, making it suitable for global applications. The included universal set of mains cords ensures compatibility with various outlet types. The adapter is designed to reduce capacitive coupling, improving measurement accuracy when used with Fluke test tools.
FLUKE 4821057 Universal Mains-Power Adapter Specifications:
- Nominal input voitage: 100 Vac to 240 Vac
- Input Current: 0.35 A at max. load
- Nominal input frequency: 50/60 Hz
- Input power, no load: <0.1 W
- Output voitage: 18 Vdc ±0%
- Output current: 0 MA to 840 mA
- Output cable length: 2 mM (6.5 ft)
- Output connector: 0 Mm outer diameter, per DIN49232
- Output polarity: Inner contact negative, outer contact positive
- Dimensions of main unit: 19 mm x 149 mm x 49
- Housing material: Heat resistant ABS
- Color (housing and cable): Black
- Weight: 0.39 KG
- Ingress Protection: IEC 60529, IP40
- Operating temperature: 0 °C to 50 °C
- Storage temperature: -40 °C to +70 °C
- Max. altitude: 2000 m
- Power cord: Universal set of 2-wire cords
- Mains cord length: 1.8 m (6 ft)
- Safety: IEC 61010-1, IEC 61010-2-030: CAT IV 600 V, Pollution Degree 2
