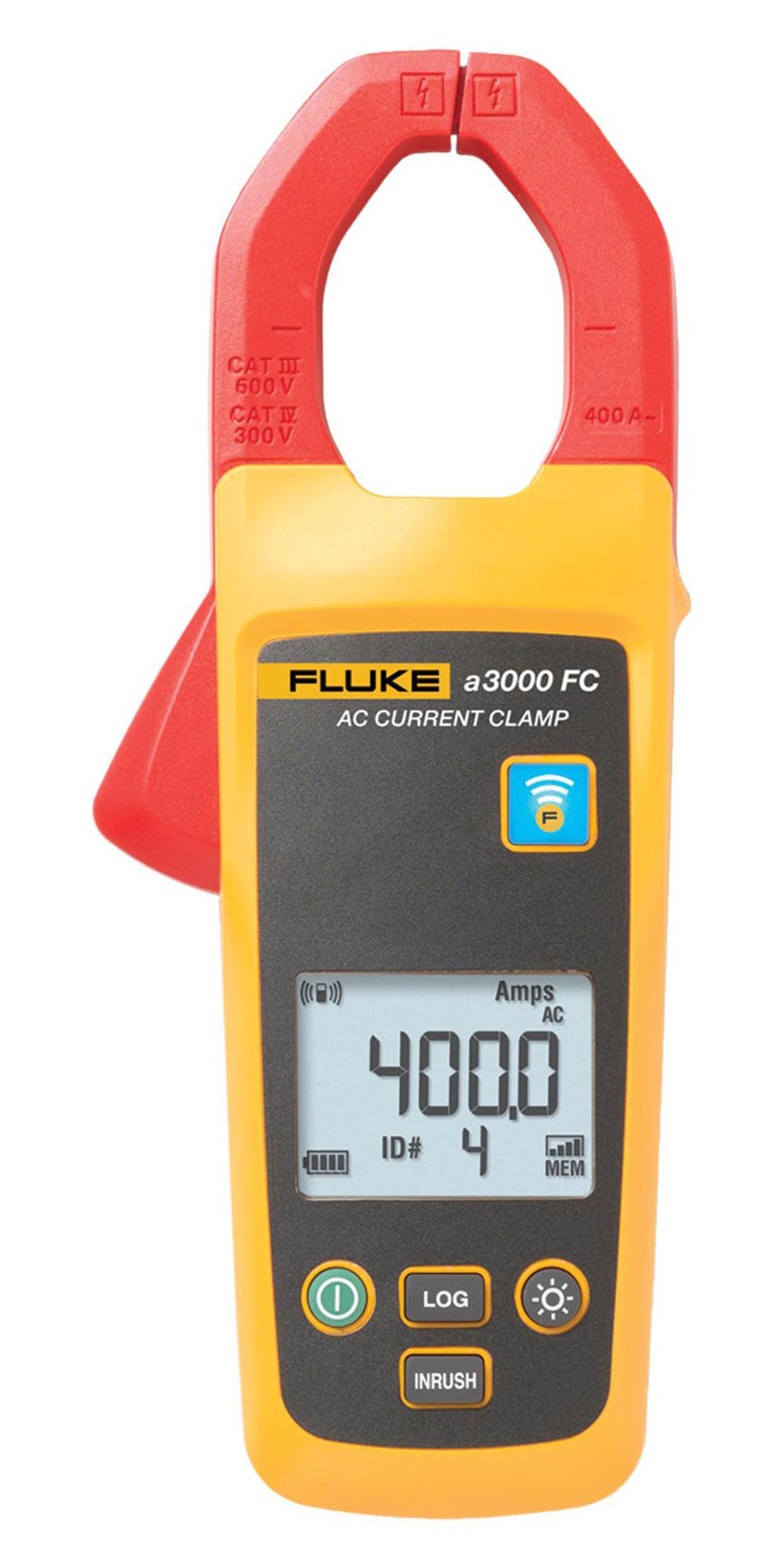

FLUKE FLKA3000FC Wireless AC Current Clamp Module
The Fluke a3000 FC Wireless AC Current Clamp Module provides a convenient and accurate way to measure AC current without interrupting circuits. Its wireless capabilities allow for real-time data monitoring and analysis, enhancing efficiency in industrial settings. The module's robust design and wide operating temperature range make it suitable for demanding environments. It's a valuable tool for electrical maintenance, troubleshooting, and process monitoring, enabling users to quickly identify and resolve electrical issues while improving overall system performance.
FLUKE FLKA3000FC Wireless AC Current Clamp Module Specifications:
- Range: 0.5 A to 400.0 A
- Resolution: 0.1 A
- Accuracy: 400.0 A: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz to 500 Hz)
- Inrush: Max displayed reading: 999.9A
- Crest factor (50 Hz/60 Hz): 3 at 500 A, 2.5 at 600 A, 1.42 at 1000 A, add 2 % for C.F. > 2
- LCD w/backlight: 3½ digits
- Log rate/interval: 1 sec minimum/adjustable by PC
- Battery type: 2 AA, NEDA 15 A, IEC LR6
- Battery life: 400 hours
- Memory: Record up to 65,000 readings
- RF communications: 2.4 GHZ ISM Band
- RF communication range: Open air, unobstructed: Up to 20 m; Obstructed, sheetrock wall: Up to 6.5 m; Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +60 °C
- Temperature coefficient: Add 0.1 x (specified accuracy)/°C (< 18 °C or > 28 °C)
- Operating humidity: 90 % at 35 °C, 75 % at 40 °C, 45 % at 50 °C
- Altitude: Operating: 2,000 m; Storage: 12,000 m
- EMC: EN 61326-1:2006
- Safety compliance: IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
- Safety rating: CAT III 600 V
- Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
- Ingress Protection (IP) rating: IP30
- Pollution degree: 2
- Jaw opening: 34 mm (1.33 in)
- Size (HxWxD): 20.3 cm x 7.49 cm x 3.55 cm (8 in x 2.95 in x 1.4 in)
- Weight: .22 kg (8 oz)
