FLUKE FLUKE1587I400FC Insulation Multimeter

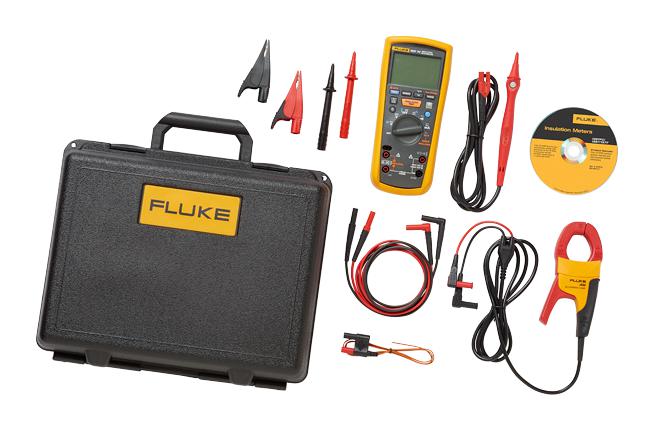

The Fluke 1587 FC is a dual-function insulation multimeter kit that includes the Fluke i400 AC current clamp. It features advanced diagnostic functions via the Fluke Connect app, such as frequency ratio tests with TrendIt graphs for quick moisture and contamination detection in insulation. The multimeter offers memory storage for historical data, a high-safety design, and a VFD low-pass filter for precise motor drive measurements. Additional capabilities include auto-discharge of capacitive voltage and resistance/continuity testing, making it ideal for troubleshooting and preventative maintenance. The kit comes with a rugged soft case and magnetic hanger for easy portability and use in field environments.
FLUKE FLUKE1587I400FC Insulation Multimeter Specifications:
- Insulation test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation test range: 0.01 MQ to 2 GO
- AC current clamp measurement: 1A to 400A
- Clamp diameter: maximum conductor size 32mm
- Display: Large back-lit 6000-count
- Voltage measurement: AC/DC from 600 mV to 1000 V
- Resistance: 0.1 Ω to 50 MO
- Frequency range: 5 Hz to 100 kHz
- Temperature measurement: -40°C to 537°C
- Power supply: Four AA batteries, approximately 1000 hours of typical use
- Operating temperature: -20°C to 55°C
- Storage temperature: -40°C to 60°C
- Safety ratings: CAT III 1000 V, CAT IV 600 V
- Dimensions: 5.0 cm H x 10.0 cm W x 20.3 cm L
- Weight: 850 g
- Connectivity: Fluke Connect app for data sharing, TrendIt graphs, memory storage
- Additional features: Auto power off, auto-discharge, true-rms measurements, resistance continuity testing, diode test
- Enclosure protection: IEC 61010-1 Pollution Degree 2, IP40
Buy the Fluke Series 1587 FC Insulation Multimeter: FLUKE1587I400FC
Purchase the Fluke 1587 FC insulation multimeter kit online today to enhance your troubleshooting efficiency. Equipped with advanced diagnostic functions, Fluke Connect app compatibility, memory storage, and a rugged design, it simplifies preventive maintenance and troubleshooting tasks. The included AC current clamp allows for non-intrusive current measurements up to 400A, making it ideal for industrial applications. Lightweight and portable with a protective case, this multimeter ensures reliable performance and safety standards, enabling professionals to diagnose insulation issues accurately and quickly in the field.
Buy Fluke 1587 FC insulation multimeter kit with AC current clamp now and experience unmatched accuracy, safety, and diagnostic capability for field troubleshooting.
