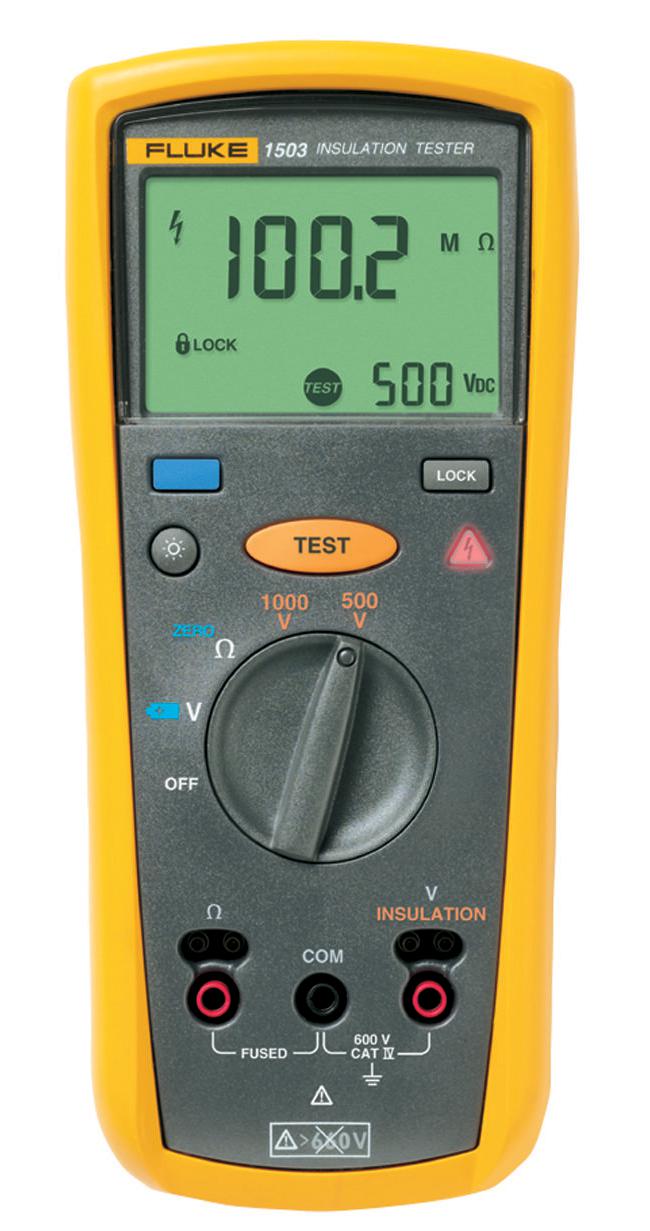

FLUKE FLUKE1503 Insulation Tester
The Fluke 1503 Insulation Tester is a compact, rugged, and reliable device designed for easy troubleshooting, commissioning, and preventative maintenance. It features multiple test voltages, a large backlit display, and offers added safety with live circuit detection above 30 V, auto-discharge of capacitive voltage, and a CAT IV 600 V overvoltage category rating. The tester includes a remote test probe, test leads, probes, alligator clips, and accepts an optional magnetic hanging system to free your hands during operation. Powered by four AA batteries, it can perform over 1,000 insulation tests with auto power-off for battery efficiency. Suitable for applications in sensing and instrumentation, signal processing, testing and measurement, and portable device maintenance.
FLUKE FLUKE1503 Insulation Tester Specifications:
- Insulation test range: 0.01 MQ to 10 GQ (Model 1507), 0.01 MQ to 2000 MQ (Model 1503)
- Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
- AC/DC voltage measurement: 0.1 V to 600 V
- Resistance measurement: 0.01 Q to 20.00 KQ
- Auto-discharge time: less than 0.5 seconds for C = 1 IF or less
- Live circuit detection: inhibits test if voltage > 30 V
- Overvoltage category: CAT IV 600 V
- Display: Large backlit LCD
- Power source: Four AA batteries (NEDA 15A or IEC LR6), with battery life for over 1,000 insulation tests
- Temperature ranges: -20°C to 55°C operating, -40°C to 60°C storage
- Safety standards: EN61557, IEC/EN 61010-1, CSA, TUV
- Size: Approx. 5.0 cm H x 10.0 cm W x 20.3 cm L
- Weight: 550 g (1.2 lb)
- IP rating: P40
Buy the Buy Fluke Insulation Testers Part Number FLUKE1503 Online
Purchase the Fluke 1503 Insulation Tester online today to experience precise insulation resistance testing with multiple voltages, live circuit detection, and a durable, compact design. With large backlit display and safety features including auto-discharge and CAT IV 600 V rating, this essential tool is perfect for troubleshooting, commissioning, and preventive maintenance. Equipped with remote test probe, test leads, alligator clips, and optional magnetic hanger, it offers easy, safe, and efficient testing. Buy now and keep your electrical systems running reliably and safely.
Order your Fluke Series1503 insulation tester today and ensure accurate, safe, and reliable insulation testing for your electrical maintenance needs.
