FLUKE FLUKE1775 Power Quality Analyzer

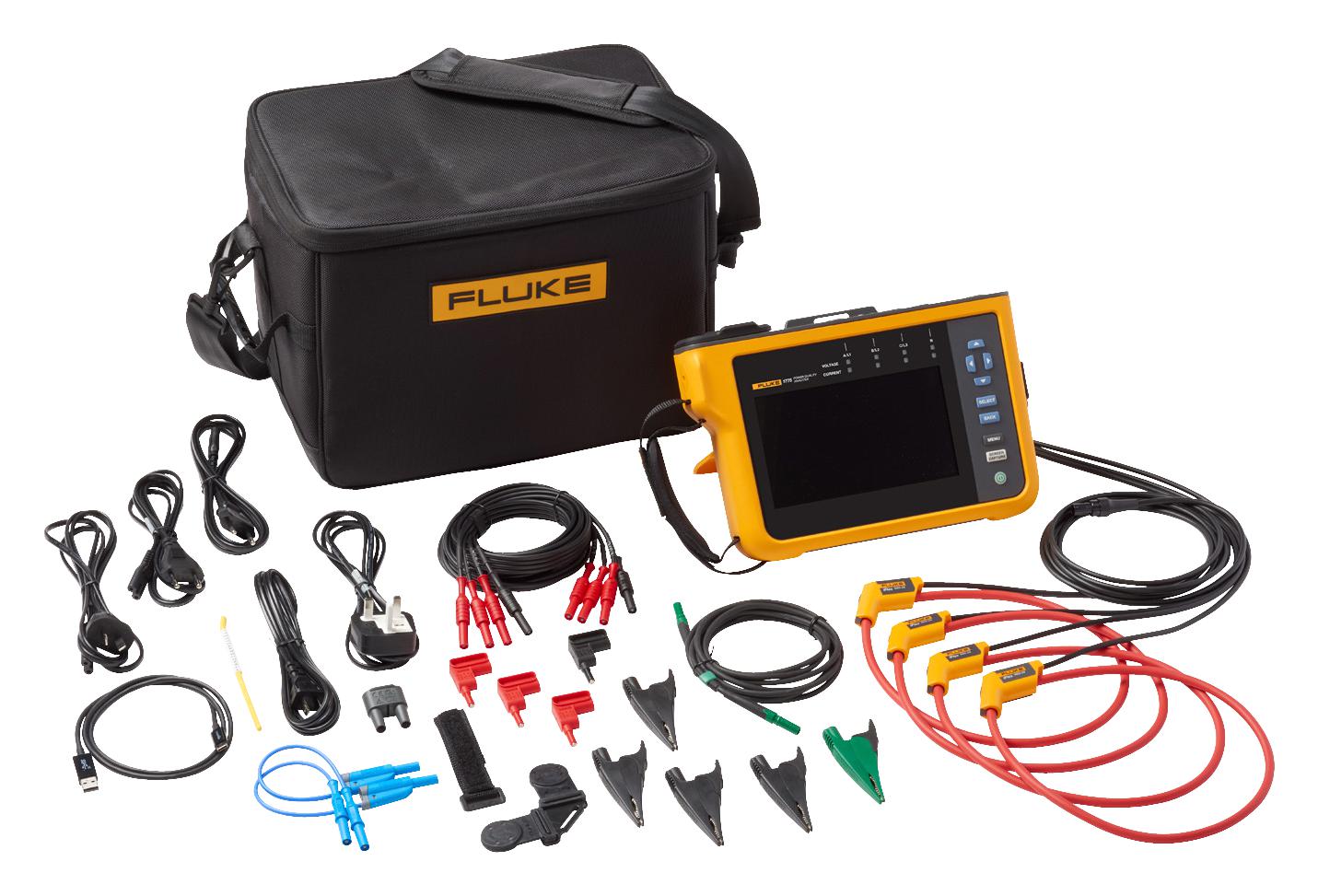

The Fluke 1775 Power Quality Analyzer offers advanced transient capture technology with 1 MHz sampling, automatic measurements, and an ergonomic design. It is ideal for energy surveys, harmonic analysis, and troubleshooting transient issues. Equipped with versatile interfaces such as Ethernet, WiFi, LTE, GPS, and multiple USB options, it ensures flexible data transfer and precise timing. The device features a large touchscreen, internal GPS, and robust safety ratings up to CAT IV 600 V, making it suitable for service entrance and downstream measurements. Package includes probes, test leads, magnet probes, a hanging kit, and protective cases, supporting comprehensive power diagnostics in demanding environments.
FLUKE FLUKE1775 Power Quality Analyzer Specifications:
- Number of voltage inputs: 4, referenced to PE, maximum voltage 1000 V rms / 600 V CAT IV
- Sampling frequency: 80 kS/s at 50/60 Hz, 24-bit synchronous sampling
- Voltage transient measurement range: +8 kV, sampling rate: 1 MS/s for models 1778 and 20 MS/s for 1777
- Current inputs: 4, range automatically selected; from 40 mA to 6000 A depending on probe used
- Bandwidth: DC to 30 kHz for PQ measurements, transients capture up to 1 MHz (1778) or 20 MHz (1777)
- Interfaces: Ethernet 1 Gbit/s, USB 2.0 & 3.0 Type A, WiFi ac 2.4/5 GHz, Bluetooth 5.0/BLE, LTE-A Cat 12, GPS MCX connector
- Measurement accuracy: Voltage ±0.1% of nominal, current ±0.01 A to ±2%, harmonic 0.1%, THD 0.1%, voltage unbalance ±0.15%, current unbalance ±0.15%
- Environmental: Operating -10°C to 50°C, storage -20°C to 60°C, IP50 ingress protection, vibration IEC 60721-3-3: 3K5
- Power supply: Internal Li-Ion battery with 1.5 hours runtime, max power consumption 40 VA, powered from measured circuit or external adapter
- Size: 28.0 x 19.0 x 6.2 cm, weight: 2.1 kg (4.6 lbs), with slot for Kensington lock
- Safety Rating: IEC 61010-1 pollution degree 2, Overvoltage Category IV 600 V, CAT III 1000 V, CAT II 300 V with adapters
Buy the Fluke FLUKE1775 U+2013 Reliable Power Quality Analyzer for Industrial Applications
Get the Fluke 1775 Power Quality Analyzer online today to perform comprehensive electrical system assessments. Featuring automatic measurements, fast transient capture up to 20 MHz, versatile connectivity including WiFi, LTE, GPS, and USB, it ensures accurate diagnostics across demanding environments. Its ergonomic design with a large touchscreen simplifies operation in the field, while safety ratings up to CAT IV 600 V enable service entrance measurements. Bundle includes current probes, test leads, magnet probes, and protective cases to support thorough power quality troubleshooting and analysis.
Order your Fluke Series1775 Power Quality Analyzer today and enhance your power diagnostics with reliable, high-speed transient capture and automatic measurements.
Frequently Asked Questions
Where can I buy FLUKE FLUKE1775?
You can click on the BUY or RFQ button to purchase FLUKE1775 from an authorized FLUKE distributor.
How do I troubleshoot issues or seek technical support for part FLUKE1775?
You can download the FLUKE1775 datasheet or visit the FLUKE website for support.
Who is the manufacturer of FLUKE1775?
FLUKE
