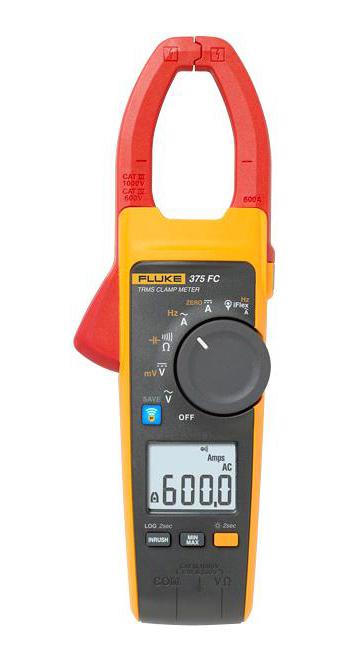

FLUKE FLUKE375FC Wireless Clamp Meter
The Fluke 375 FC is a wireless clamp meter designed for advanced electrical troubleshooting in industrial environments. It measures AC and DC currents up to 600 A directly, with an optional iFlex flexible current probe allowing measurements up to 2,500 A. The device also provides AC and DC voltage measurements up to 1,000 V and frequency measurement up to 500 Hz using the included jaw and optional iFlex probe. It features true-RMS measurement for accurate readings on non-linear signals. The meter can connect via Fluke Connect to a smartphone, enabling remote measurement display for safer operation. It complies with CAT III 1000V and CAT IV 600V safety standards. Powered by two AA batteries, the device dimensions are 249 x 85 x 45 mm. Applications include testing, measurement, wireless data collection, and industrial use. Included accessories are a soft carrying case, TL75 test leads, two AA alkaline batteries, and safety documentation.
FLUKE FLUKE375FC Wireless Clamp Meter Specifications:
- Maximum voltage: 1000 V between any terminal and earth ground
- Battery type: 2 AA alkaline batteries, IEC LR6
- Dimensions: 249 mm x 85 mm x 45 mm
- Weight: 395 g
- Jaw opening: 34 mm
- Flexible current probe diameter: 7.5 mm
- Flexible current probe cable length: 1.8 m
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +60 °C
- Operating humidity: 90% RH at 10-30 °C
- Altitude: up to 3000 m
- Safety rating: IEC 61010-1, Pollution Degree 2, IEC 61010-2-033 CAT III 1000 V / CAT IV 600 V
- Ingress protection: IP30 (non-operating)
- RF certification: FCC ID:T68-FBLE, IC:6627A-FBLE
- EMC: IEC 61326-1, Class A
- AC current via jaw: 600 A maximum
- AC current via flexible probe: 2500 A maximum
- DC current: 600 A maximum
- AC/DC voltage: 1000 V
- Resistance: 60 kΩ
- Capacitance: 60,000 pF
- Frequency range: 5-500 Hz
- True RMS measurement for accurate readings on non-linear signals
- Wireless data transfer via Bluetooth to smartphones
- Includes soft carrying case, test leads, batteries, safety documentation
- Integrated VFD low-pass filter for motor drive measurements
- Temperature coefficient: 0.1 x specified accuracy per °C above 28 °C or below 18 °C
Buy the Buy Fluke Wireless Clamp Meter Part Number FLUKE375FC Online
Order the Fluke Wireless Clamp Meter FLUKE375FC online today for precise AC and DC current and voltage measurements up to 1,000 V. Featuring Bluetooth connectivity, true-RMS accuracy, and optional flexible current probe for high-current measurements up to 2,500 A. Easily record, store, and share measurement data remotely with Fluke Connect, ensuring safety and efficiency during industrial troubleshooting. Compact, durable, and compliant with industry safety standards, this meter enhances your testing capabilities in challenging environments. Buy now and elevate your troubleshooting performance.
Buy Fluke FLUKE375FC now and experience unmatched reliability and performance with advanced wireless troubleshooting capabilities and flexible current measurement.
