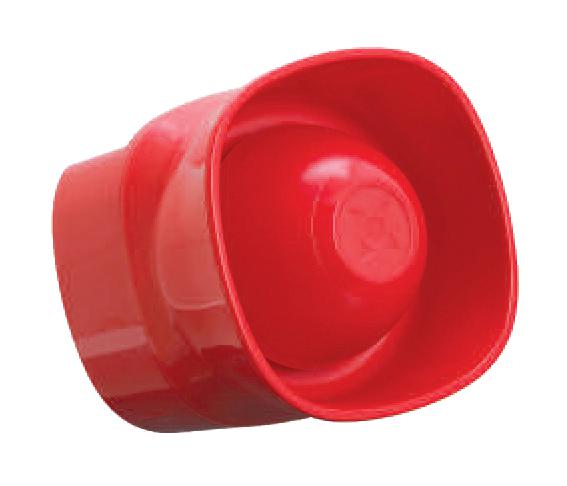

FULLEON 651012FULL0057X High Output Sounder

The Symphoni High Output Sounder offers a loud operational volume of up to 120dB, making it ideal for high noise environments. It features two-stage alarm functionality with 32 user-selectable tones, including six certified for fire use. Its weatherproof IP66 version ensures outdoor durability. The compact design measures 108mm and operates on 18-28V DC, consuming around 240mA. Constructed from durable ABS and PC materials, it is suitable for industrial, fire, and outdoor alarm applications, providing reliable and effective signaling in demanding conditions.

Source
Part No:
Stock:
Inv Date:
Price:
Buy/RFQ:
No results.

FULLEON 651012FULL0057X High Output Sounder Specifications:

  • Voltage: 18 - 28V DC
  • Current: 240mA (Typical Tone 3)
  • Sound Output: 114dB(A) (Typical Tone 3), 120dB(A) (Typical Tone 6)
  • Tones: 32
  • Temperature Range: -10°C to +55°C, 25°C to +70°C (WP version)
  • Protection: IP21C, IP66 (WP version)
  • Construction: ABS, PC lens
  • Weight: 0.58Kg, 0.68Kg (WP version)
  • Colors: Red or white, WP version white
  • Dimensions: 108mm in diameter
  • Monitoring: Reverse polarity
  • Weatherproof: IP66 rated for outdoor use

Buy the Symphoni High Output – Reliable Signaling for Industrial Applications

Order the Symphoni High Output Sounder online today for your industrial or outdoor alarm needs. Delivering up to 120dB, this compact, weatherproof device features 32 tones, including six fire-rated options. Its efficient design consumes low current and provides reliable signaling in harsh environments. Perfect for high noise workplaces or outdoor areas, the sounder is built with durable ABS and PC materials. Buy now to ensure maximum safety and effective alerting in demanding industrial or external applications.

Get Symphoni High Output sounder today—designed for high noise environments and outdoor durability.
