FULLEON X10CEMNG1115230VAC Sounder Beacon

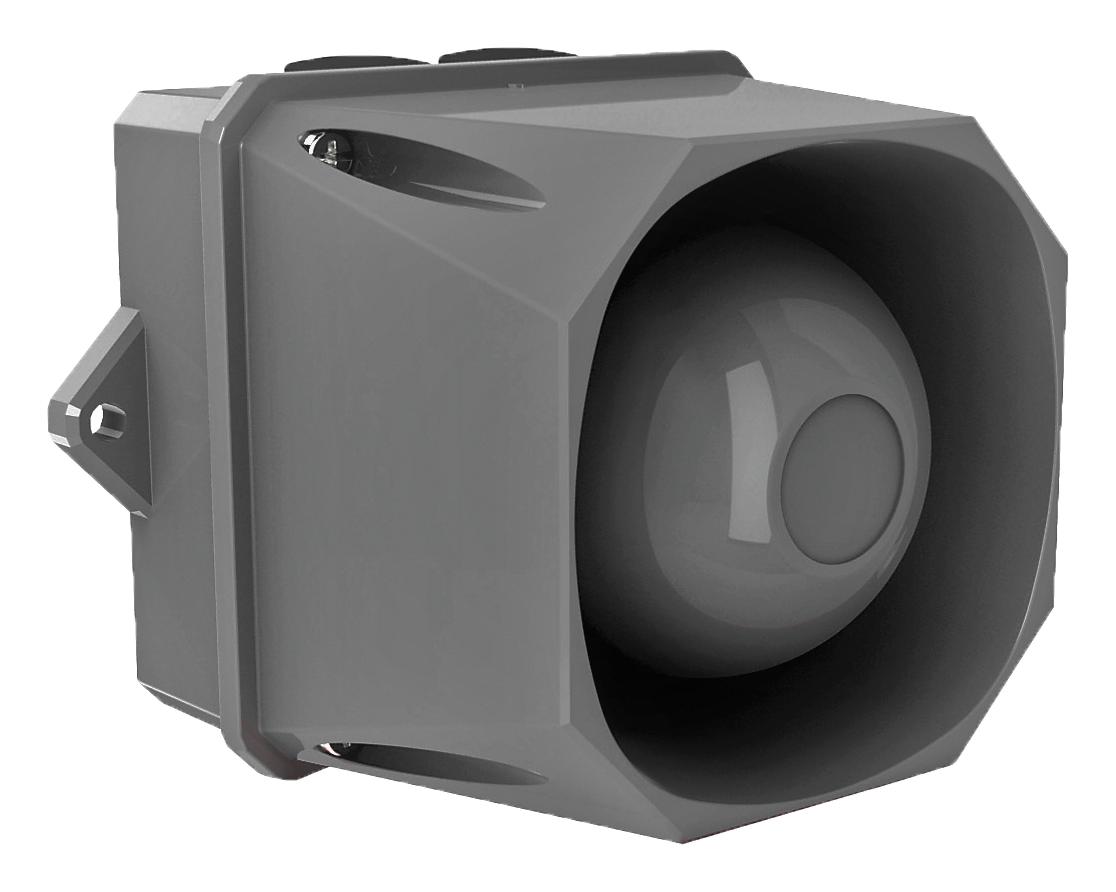

The Eaton X10 Mini Sounder Beacon is a durable industrial alarm device designed for harsh environments. Certified to IP66 and IP69K, it operates from -40°C to 70°C and features a high volume output of up to 100 dB with 102 tones. Available in multiple colors and mounting options, the beacon offers up to 4 alarm stages with versatile control, including AC and DC variants. Its UV-stabilized polycarbonate housing ensures long-lasting performance, making it suitable for integrating into advanced safety and signaling systems in industrial settings.
FULLEON X10CEMNG1115230VAC Sounder Beacon Specifications:
- Rated voltage: 10V - 60V DC/AC, 115VAC/230VAC
- Sound output: 100dB
- Alarm tones: 102
- Alarm stages: 4
- Operating temperature: -40°C to +70°C
- Ingress Protection: IP66 and IP69K
- Material: UV stabilized polycarbonate ASA
- Housing colors: Red, White, Dark Grey, Light Grey
- Lens colors: Red, Amber, Blue, Green, Clear, Magenta
- Cable entries: M20 threaded, 2 at top, 1 at bottom
- Connecting terminals: Up to 2.5 mm²
- Weight: 0.860kg (AC Mains), 0.575kg (Low voltage)
- Impact resistant, salt water resistant fasteners, with 10-year warranty
- Mounting options: Multiple lens and housing color choices, versatile installation
- Additional features: Up to 4-stage alarm, multiple control methods, high and low voltage variants
Buy the Eaton Series X10 Sounder Beacon: X10CEMNG1115230VAC
Enhance your safety systems with the Eaton X10 Mini Sounder Beacon, delivering high-volume alerts up to 100 dB with 102 tones and 4 alarm stages. Designed for industrial environments, it is IP66 and IP69K rated, functioning reliably from -40°C to 70°C. Its robust, UV-stabilized polycarbonate housing is available in multiple colors and lens options, suitable for harsh conditions. Simplify installation with versatile control options for AC and DC power, ensuring your facility stays alert and compliant with safety standards.
Order your Eaton Series X10 Mini Sounder Beacon today and equip your industrial projects with reliable, versatile signaling and warning solutions.
Frequently Asked Questions
Where can I buy FULLEON X10CEMNG1115230VAC?
You can click on the BUY or RFQ button to purchase X10CEMNG1115230VAC from an authorized FULLEON distributor.
How do I troubleshoot issues or seek technical support for part X10CEMNG1115230VAC?
You can download the X10CEMNG1115230VAC datasheet or visit the FULLEON website for support.
Who is the manufacturer of X10CEMNG1115230VAC?
FULLEON
