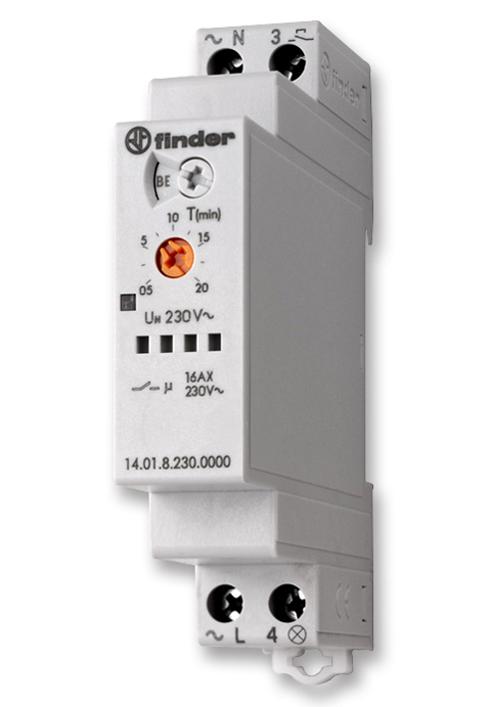

FINDER 140182300000 Electronic Staircase Timer
The Finder 14.01.8.230.0000 is a versatile electronic staircase timer suitable for a wide range of applications, including staircases, hallways, and entrances in residential and commercial buildings. This timer provides multiple functions, such as staircase timer, timing step relay, and light ON modes, allowing for flexible control of lighting and other electrical devices. It is designed to be compatible with both 3 and 4 wire systems, and features LED status indicators for easy monitoring. The timer's cadmium-free contact material and compatibility with illuminated push-buttons ensure reliable and long-lasting performance.
FINDER 140182300000 Electronic Staircase Timer Specifications:
- Multi-function: Electronic staircase timers
- Width: 17.5 mm
- Functions: 8 functions, switch-off early warning options
- Time Setting: 30 seconds to 20 minutes
- Load Switching: Zero crossing
- Systems: Suitable for 3 or 4 wire systems
- Mounting: 35 mm rail (EN 60715)
- Contact Configuration: 1 NO (SPST-NO)
- Rated Current: 16 A
- Peak Current: 30 A (120 A - 5 ms)
- Rated Voltage: 230 V AC
- Maximum Switching Voltage: 230 V
- Rated Load AC1: 3700 VA
- Rated Load AC15 (230 V AC): 750 VA
- Nominal Lamp Rating (230 V): 3000 W
- Minimum Switching Load: 1000 mW (10/10)
- Contact Material: AgSnO2
- Nominal Voltage (UN): 230 V AC (50/60 Hz)
- Rated Power: 3/1.2 VA (50 Hz)
- Electrical Life at Rated Load: 100 · 10^3 cycles
- Delay Setting: 0.5…20 min
- Max Push-buttons: 30
- Ambient Temperature: –10…+60 °C
- Protection Category: IP 20
