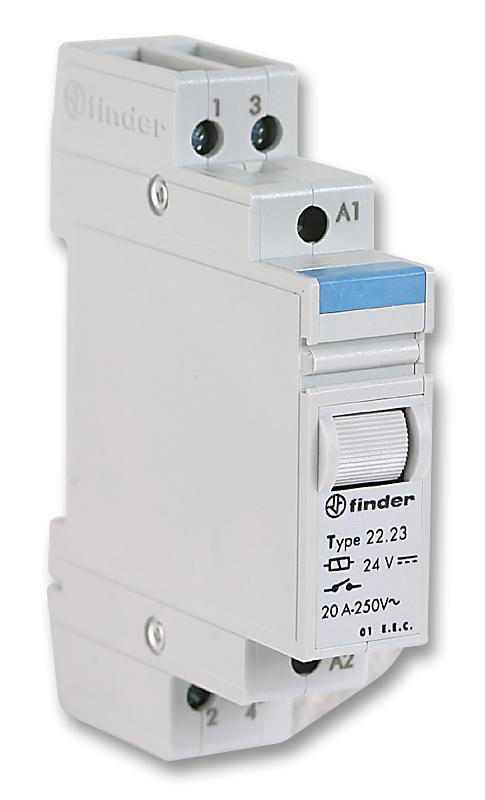

FINDER 222390244000 Industrial Power Relay
This power relay features a 24V DC coil and silver-tin oxide contacts, rated for 20A, providing reliable switching with single NC and NO contacts. Suitable for industrial automation, it offers reinforced insulation and continuous duty operation, making it ideal for controlling high-current loads in various manufacturing and electrical systems.
FINDER 222390244000 Industrial Power Relay Specifications:
- Contact configuration: 1 NO + 1 NC
- Rated current: 20A
- Rated voltage VAC: 250 / 440
- Rated load: 6,250 VA across phases
- Rated current AC3 / AC-7b: 10 A
- Coil nominal voltage: 24V DC
- Coil consumption: 0.024 A
- Operating range DC/AC: (0.8 ... 1.1) Uy
- Holding voltage: 0.4 Uy
- Dropout voltage: 0.1 Uy
- Mechanical life: 2 x 10^8 cycles
- Electrical life at rated load: 30 x 10^4 cycles
- Insulation between coil and contacts: 6 kV
- Ambient temperature range: -20°C to +50°C
- Protection category: 1P20
- Maximum coil power: 2 W
- Wire connection: Screw terminals, max wire size 6 AWG
- Screw torque: 0.8 Nm
- Dimensions: approx. 60.8 mm width, suitable for DIN rail mounting
Buy the Buy Finder Power Relay Part Number 222390244000 Online
Purchase the Finder power relay with part number 222390244000 online today to enhance your electrical systems. Featuring a 24V DC coil, 20A rated current, silver-tin oxide contacts, and reinforced insulation, this relay provides dependable switching performance. Its robust construction supports continuous duty and high inrush loads, ideal for manufacturing, automation, and electrical control applications. Easy DIN rail mounting, screw terminals, and compliance with industry standards make it a versatile choice for professionals seeking durability and reliability in their systems.
Order your Finder 222390244000 power relay today and ensure reliable control for your industrial automation projects with high-current switching capacity.
