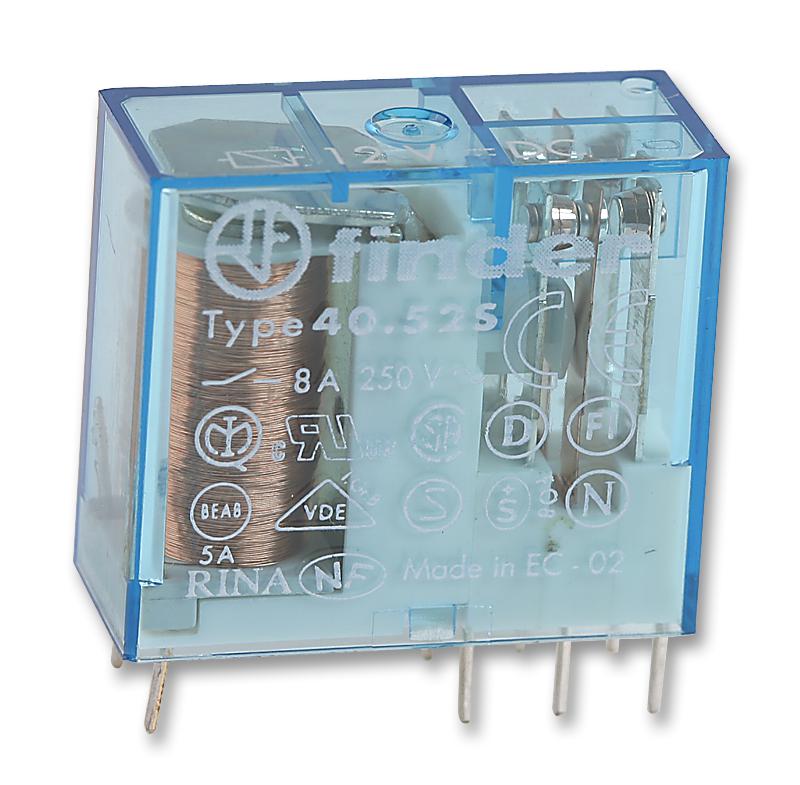

FINDER 405270120000 High Isolation Miniature Relay
The Finder 40 series features miniature electromechanical relays designed for high isolation and versatile mounting options, including PCB and rail mount. These relays provide dielectric strength up to 6 kV and are available in single and double-pole configurations, with contact ratings up to 16A at 250VAC. Made with cadmium-free contact materials, they support DC and AC coils, including sensitive and bistable options. Suitable for industrial automation, power management, and control systems, they ensure reliable operation with flux-proof and wash-tight versions, UL and CSA approvals, and compact 8 mm contact pitch for efficient integration.
FINDER 405270120000 High Isolation Miniature Relay Specifications:
- Contact configuration: SPDT, SPST-NO, DPST
- Rated current: up to 16A at 250VAC
- Dielectric strength: 6 kV (coil-contacts)
- Contact pitch: 3.5 mm or 5 mm
- Mounting options: PCB, 35 mm rail, screw/screwless sockets
- Coil types: DC (standard/sensitive), AC, bistable
- Contact material: Cadmium-free, AgNi, AgCdO
- Min. switching load: 300-500 mW
- Electrical life: 200-10^7 cycles depending on model
- Mechanical life: 10^7 cycles
- Operating temperature: -40°C to +85°C
- Certifications: UL, CSA, VDE approvals
- Isolation: 8 mm creepage and clearance
- Flux-proof: RT II standard, RT III optional
Buy the Finder Series 40 High Isolation Relays: 405270120000
Order the Finder 40 series relay online today to ensure your automation and control systems benefit from high dielectric strength, cadmium-free contacts, versatile mounting options, and reliable performance. These compact relays support various coil types, including sensitive and bistable configurations, and are UL and CSA approved, guaranteeing quality and safety. With 8 mm creepage and clearance distances, they are ideal for industrial, power management, and automation projects. Purchase now to enhance your system’s efficiency and operational reliability with a trusted, high-quality relay.
Buy Finder 405270120000 now and experience unmatched reliability and performance in industrial automation and power control applications.
Frequently Asked Questions
Where can I buy FINDER 405270120000?
You can click on the BUY or RFQ button to purchase 405270120000 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 405270120000?
You can download the 405270120000 datasheet or visit the FINDER website for support.
Who is the manufacturer of 405270120000?
FINDER
