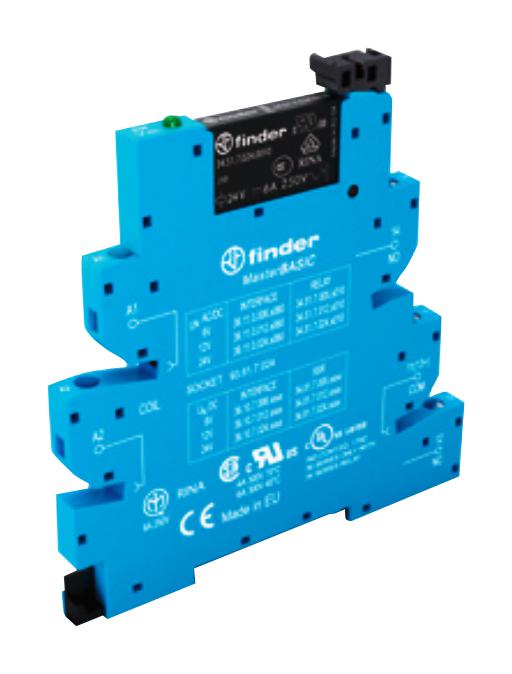

FINDER 390100060060 Interface Relay Module
The Finder 39.01.0.006.0060 is a compact interface relay module designed to simplify integration into PLC and electronic systems. Its 6.2mm width saves valuable space, while the provision for jumper links allows for flexible configuration. The module offers secure retention and easy ejection via a plastic clip, enhancing ease of use and maintenance. Suitable for a wide range of applications including packaging machines, bottling plants, traffic light controls, and electrical distribution panels.
FINDER 390100060060 Interface Relay Module Specifications:
- Series: 39
- Width: 6.2 mm
- Connections: 16-way jumper link
- Coil: Integral coil indication and protection circuit
- Retention: Secure retention and easy ejection by plastic clip
- Terminals: Dual screw head (blade+cross) and Push-in terminals
- Rated Current: 6 A
- Maximum Peak Current: 10 A
- Rated Voltage: 250 V AC
- Maximum Switching Voltage: 400 V
- Rated Load AC1: 1500 VA
- Rated Load AC15 (230 V AC): 300 VA
- Single Phase Motor Rating (230 V AC): 0.185 kW
- Mounting: 35 mm rail (EN 60715)
