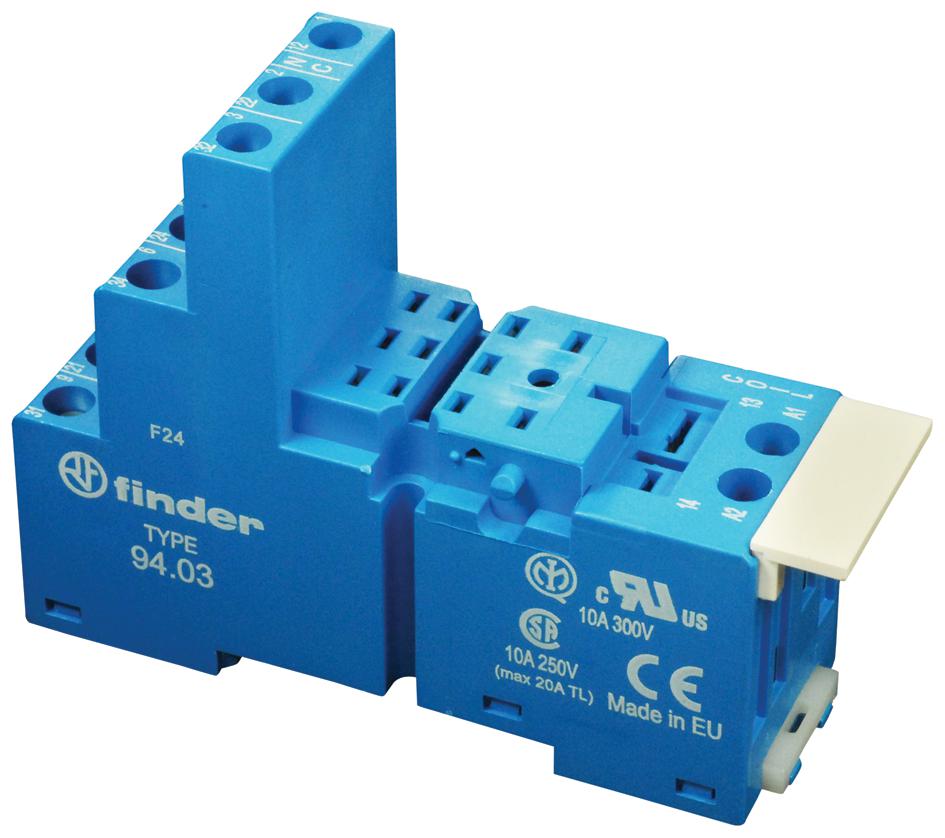

FINDER 9403 General Purpose Relay
The FINDER 94.03 series represents a versatile range of general-purpose relays designed for diverse industrial applications. These relays offer flexibility with 2, 3, or 4 pole configurations, catering to various circuit requirements. Coil options include both AC (50/60 Hz) and DC, providing adaptability to different power supply scenarios. Key features include cadmium-free contacts for environmental compliance, RT III (wash tight) options for demanding environments, and the availability of lockable test buttons and mechanical indicators for enhanced operational feedback. The relays are suitable for applications in automation, control systems, and general electrical circuits where reliable and adaptable switching is required.
FINDER 9403 General Purpose Relay Specifications:
- Contact Configuration: 2 CO (DPDT), 3 CO (3PDT), 4 CO (4PDT)
- Rated Current: 10 A
- Maximum Peak Current: 20 A
- Rated Voltage: 250 V AC
- Maximum Switching Voltage: 400 V AC
- Rated Load AC1: 2,500 VA
- Rated Load AC15 (230 V AC): 500 VA
- Single Phase Motor Rating: 0.37 kW
- Breaking Capacity DC1: 10/0.25/0.12 A (30/110/220V)
- Minimum Switching Load: 300 mW (5/5mA)
- Contact Material: AgNi
- Coil Voltage: 6 - 12 - 24 - 48 - 60 - 110 - 120 - 230 - 240 V AC / 6 - 12 - 24 - 48 - 60 - 110 - 125 - 220 V DC
- Operating Range: (0.8…1.1)UN
- Holding Voltage: 0.8 UN AC/ 0.5 UN DC
- Must Drop-out Voltage: 0.2 UN AC/ 0.1 UN DC
- Mechanical Life: 20 · 10^6 cycles
- Electrical Life at Rated Load AC1: 200 · 10^3 cycles
- Operate/Release Time: 10/5 ms
- Insulation Between Coil and Contacts: 4 kV
- Dielectric Strength Between Open Contacts: 1,000 V AC
- Ambient Temperature Range: –40…+85 °C
