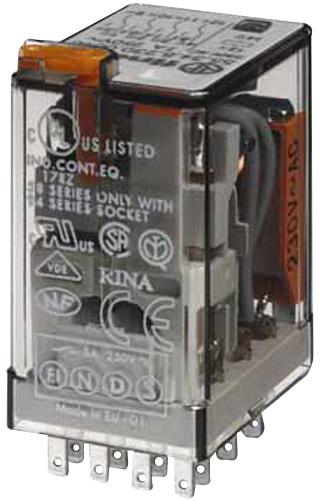

FINDER 553481200050 Industrial Relay
The relay is a plug-in mount, general-purpose device with an AC coil. It features four contact poles (4PDT) with cadmium-free silver-nickel contacts, a lockable test button with an LED indicator (AC), and is suitable for use with 94-series sockets. The relay includes coil EMC suppression and has a dust-proof RTI standard protection rating. It operates within a temperature range of -40°C to 85°C and is compliant with European patents. Ideal for industrial applications.
FINDER 553481200050 Industrial Relay Specifications:
- Rated values: 10A-250V
- Dielectric strength: 2kVAC
- Protection category: IP 20
- Ambient temperature: -40°C to 85°C
- Wire strip length: 8mm
- Max. wire size for sockets: 2x (0.2...1.5) mm²
- Ud (Rated Voltage): 250V
- Contact configuration: 4PDT
- Contact material: Cadmium-free silver-nickel
- Mechanical life: 20 x 10^4 cycles
- Electrical life at rated load: 150 x 10^4 cycles
- Operate/release time: 11/3 ms
- Insulation between coil and contacts: 2kVAC
Buy the Buy Fusebox Relay Part Number 553481200050 Online
Purchase the Fusebox industrial relay online and benefit from our quick delivery, competitive pricing, and guaranteed quality. This relay features four cadmium-free silver-nickel contacts, an AC coil, and a lockable test button with LED indicator, making maintenance and testing straightforward. Designed for durability, it operates within a temperature range of -40°C to 85°C and includes coil EMC suppression. Ideal for industrial automation, control panels, and safety systems, this relay offers reliable switching and long service life, ensuring your operations run smoothly and efficiently.
Get Fusebox relay 553481200050 today—built for reliability with four contact poles, AC coil, and safety features for industrial applications.
Frequently Asked Questions
Where can I buy FINDER 553481200050?
You can click on the BUY or RFQ button to purchase 553481200050 from an authorized FINDER distributor.
How do I troubleshoot issues or seek technical support for part 553481200050?
You can download the 553481200050 datasheet or visit the FINDER website for support.
Who is the manufacturer of 553481200050?
FINDER
