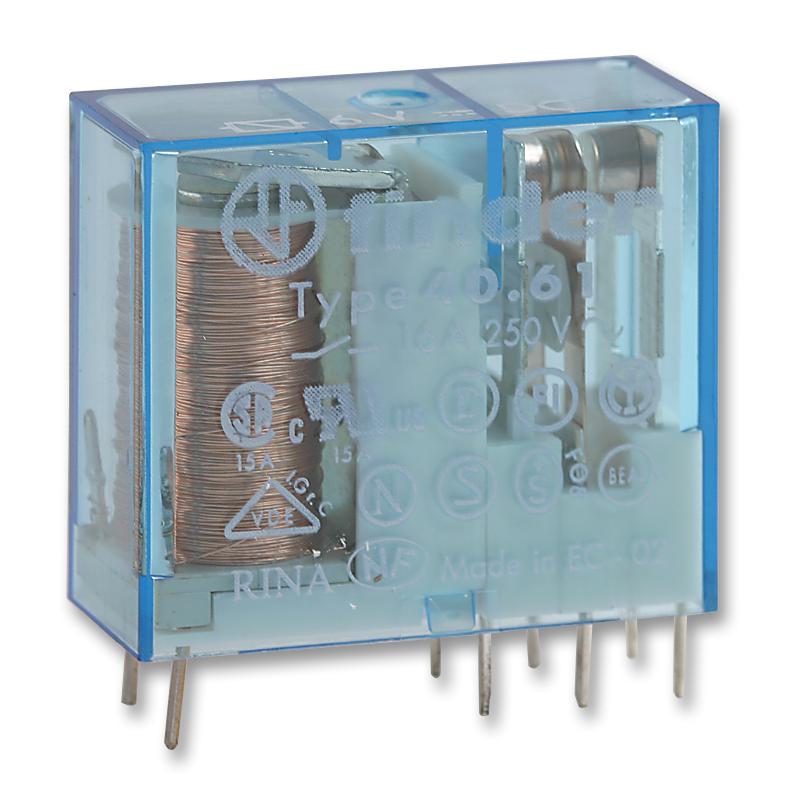

Finder 406190060000 Industrial Relay
This miniature relay series offers versatile 1 and 2 pole configurations with current ratings up to 16 A and coil options for AC and DC voltages. Designed for PCB and rail mounting, these relays feature cadmium-free contacts, high isolation voltage up to 6 kV, flux-proof construction, and UL listing. Suitable for automation, industrial control, and relay socket integration, they provide reliable switching performance with inductive load handling, coil EMC suppression, and optional bistable versions for energy-efficient applications.
Finder 406190060000 Industrial Relay Specifications:
- Number of Poles: 1 or 2
- Rated Current: Up to 16 A
- Contact Material: Cadmium Free, AgCdO, AgNi, AgSnO
- Contact Configuration: SPDT, DPDT
- Switching Voltage: AC 250/400 V, DC 30/110/220 V
- Rated Load: Up to 4,000 VA (AC1), 16 A (DC1)
- Coil Voltage: 6-125 V AC/DC, standard and sensitive
- Coil Power: 0.5 W to 1.2 W depending on type
- Isolation Voltage: Up to 6 kV (coil-contacts), 8 mm reinforced insulation
- Electrical Life: 200-10^6 cycles (AC), 10^6 cycles at rated load
- Mechanical Life: 10^7 cycles
- Operating Temperature: -40°C to +70°C
- Insulation Resistance: ≥100 MΩ at 500 V DC
- Dielectric Strength: 1,000 V AC between open contacts, 4,000 V between coil and contacts
- Approvals: UL listed, flux-proof, environmentally resistant
- Mounting Options: PCB direct, socket, 35 mm rail, screw/ screwless sockets
Buy the Tinder Series 40 Relay: 406190060000
Purchase the Tinder 406190060000 relay online now for seamless integration into automation systems. With versatile pole configurations, cadmium-free contacts, UL listing, and high isolation voltage, this compact relay provides reliable switching for industrial control applications. Perfect for PCB and rail mounting, it ensures long-term durability, energy efficiency with bistable options, and excellent load handling capabilities. Order today to enhance your control systems with dependable relay technology designed for demanding environments.
Get Tinder 406190060000 relay today—built for precision, reliability, and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy Finder 406190060000?
You can click on the BUY or RFQ button to purchase 406190060000 from an authorized Finder distributor.
How do I troubleshoot issues or seek technical support for part 406190060000?
You can download the 406190060000 datasheet or visit the Finder website for support.
Who is the manufacturer of 406190060000?
Finder
