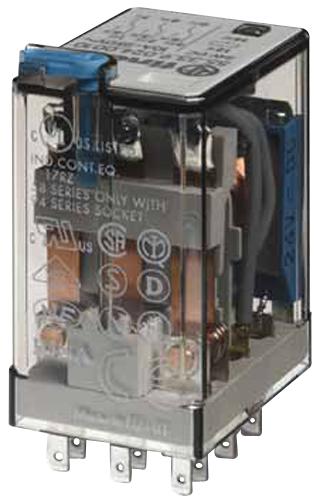

FINDER 553381200000 Three-pole relay
The 55.33.8.120.0000 is a three-pole plug-in general-purpose relay featuring cadmium-free silver-nickel contacts and a 3PDT contact configuration. Designed with an AC coil operating at 50/60Hz, it uses 94 series sockets for easy installation. Capable of handling up to 2500VA (AC1) and 500VA (AC15 at 230VAC), it controls single-phase motors up to 0.37kW at 230VAC. It supports a minimum switching load of 5mA at 5V, with high dielectric strength, making it suitable for industrial automation and control.
FINDER 553381200000 Three-pole relay Specifications:
- Contact configuration: 3CO (BPDT)
- Rated current: 10/20 A
- Rated voltage: 250/400 VAC
- Maximum switching voltage: 250 VAC
- Rated load: 2500 VA (AC1)
- AC coil operating range: 50/60Hz
- Coil resistance: 86 ohms at 12V AC
- Coil power consumption: 2.4 W at 12V AC
- Dielectric strength between open contacts: 1000 VAC
- Insulation between coil and contacts: 4 kV
- Ambient temperature range: -40°C to +70°C
- Protection category: IP 20
- Maximum wire size for socket: 2x (0.2...1.5) mm²
- Wire AWG: 2x (24...14)
- Emergency switching: Supports control of single-phase motors up to 0.37kW
- Electrical life at rated load: 200,000 cycles
- Mechanical life: 20 million operations
- Mounting: Plug-in using 94 series sockets
- Standards: According to EN 61810-1
- Dielectric strength: 2 kVAC
- Pollution degree: 2
Buy the Finder Series 55 Three-Pole Plug-in Relay: 553381200000
Enhance your automation setup with this high-quality three-pole relay designed for industrial applications. It features cadmium-free contacts, easy socket mounting, and excellent electrical life. Capable of handling loads up to 2500VA, it ensures reliable switching of single-phase motors up to 0.37kW. Constructed with high dielectric strength and IP 20 protection, this relay guarantees safe operation in harsh environments. Order online today for fast delivery and excellent performance in your control systems.
Buy Finder 553381200000 relay now and experience unmatched reliability and performance for industrial control and automation systems.
