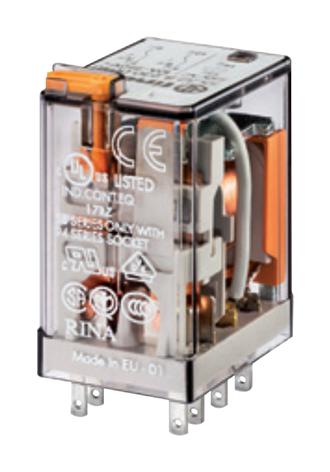

FINDER 553281100040 2 CO Relay
The Finder 55.32.8.110.0040 is a versatile plug-in relay within the 55 series, engineered for a wide range of industrial applications. This 2 CO relay is ideal for automation of blinds, grilles, and shutters, as well as control and management of electric power in environments like shipyards, road/tunnel lighting, and hoists/cranes. It boasts cadmium-free contacts, ensuring environmental compliance, and offers optional features like lockable test buttons, mechanical flag indicators, integral LEDs, and coil suppression. Compatible with 94 series sockets for flexible mounting options, this relay provides reliable performance and ease of integration into various electrical systems.
FINDER 553281100040 2 CO Relay Specifications:
- Series: 55
- Contact Configuration: 2 CO (DPDT)
- Rated Current: 10 A
- Maximum Peak Current: 20 A
- Rated Voltage: 250 V AC
- Maximum Switching Voltage: 400 V AC
- Rated Load AC1: 2500 VA
- Rated Load AC15 (230 V AC): 500 VA
- Single Phase Motor Rating (230 V AC): 0.37 kW
- Breaking Capacity DC1: 10 A / 0.5 A / 0.25 A
- Minimum Switching Load: 300 mW (5/5)
- Contact Material: AgNi
- Coil Voltage: 6 - 240 V AC / 6 - 220 V DC
- Rated Power AC/DC: 1.5 VA (50 Hz)/1 W
- Operating Range: 0.8…1.1 UN (AC/DC)
- Holding Voltage: 0.8 UN AC / 0.5 UN DC
- Must Drop-out Voltage: 0.2 UN AC / 0.1 UN DC
- Mechanical Life: 20 · 10 [6] cycles
- Electrical Life at Rated Load AC1: 200 · 10 [3] cycles
- Operate/Release Time: 10/5 ms
- Insulation Between Coil and Contacts: 4 kV
- Dielectric Strength Between Open Contacts: 1000 V AC
- Ambient Temperature Range: -40…+85 °C
- Environmental Protection: RT I
Buy the 55.32.8.110.0040 Finder 2 CO Relay | myMectronic
Purchase the Finder 55.32.8.110.0040 relay securely and conveniently online.
Buy Now
