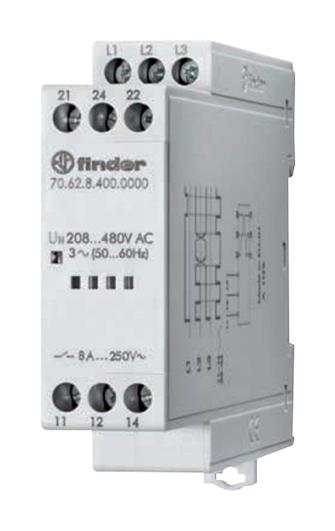

FINDER 706284000000 Voltage and Phase Monitoring Relay
The 70 series electronic voltage and phase monitoring relays provide comprehensive protection for single-phase and three-phase systems. They monitor undervoltage, overvoltage, window mode, phase rotation, phase loss, asymmetry, and neutral loss with adjustable settings and visual LED indicators. Designed for industrial automation, these relays feature positive safety logic, modular housing, and are suitable for control panels, motors, and other equipment. They ensure reliable operation and quick fault detection, making them essential for maintaining system stability and safety in various electrical applications.
FINDER 706284000000 Voltage and Phase Monitoring Relay Specifications:
- Supply Voltage: 220-240V (70.11), 380-415V (70.31/41/42), 208-480V (70.61/62)
- Operating Range: 130-280VAC (70.11), 220-510VAC (70.31/41/42), 170-500VAC (70.61/62)
- Rated Current/Peak: 10A/30A (70.11), 6A/10A (70.41), 6A/15A (70.61), 8A/15A (70.62)
- Dielectric Strength: 1000 VAC (contacts), 2500-3000 VAC (between supply and contacts)
- Electrical Life: 60-100 million cycles depending on type
- Ambient Temperature: -20°C to +60°C (-20°C to +46°C for some models)
- Protection Category: IP20
- Mounting: 35mm DIN rail
- Output Contact Rating: 6-10A, resistive load
- Detection Levels: 170-270V (Umax), 300-480V (Umin), adjustable with hysteresis
- Additional Functions: Phase loss, phase rotation, asymmetry, neutral loss, with optional memory
- LED Indicators: Green (normal), Red (fault conditions)
- Standards/Approvals: CE, EAC, cUL
Buy the Finder Series 70 Voltage and Phase Monitoring Relay: 706284000000
Secure your electrical installations with the Finder Series 70 voltage and phase monitoring relays. Offering comprehensive protection features, adjustable settings, and clear LED indicators, these relays ensure quick fault detection and system safety. Suitable for single and three-phase systems, they help prevent damage to motors and control equipment by reliably monitoring undervoltage, overvoltage, phase loss, rotation, and more. Easy to install and compliant with international standards, these relays are the ideal choice for enhancing operational safety and reducing downtime in industrial automation.
Buy Finder Series 70 voltage and phase monitoring relay now and experience unmatched system safety, reliable fault detection, and seamless protection for your electrical systems.
