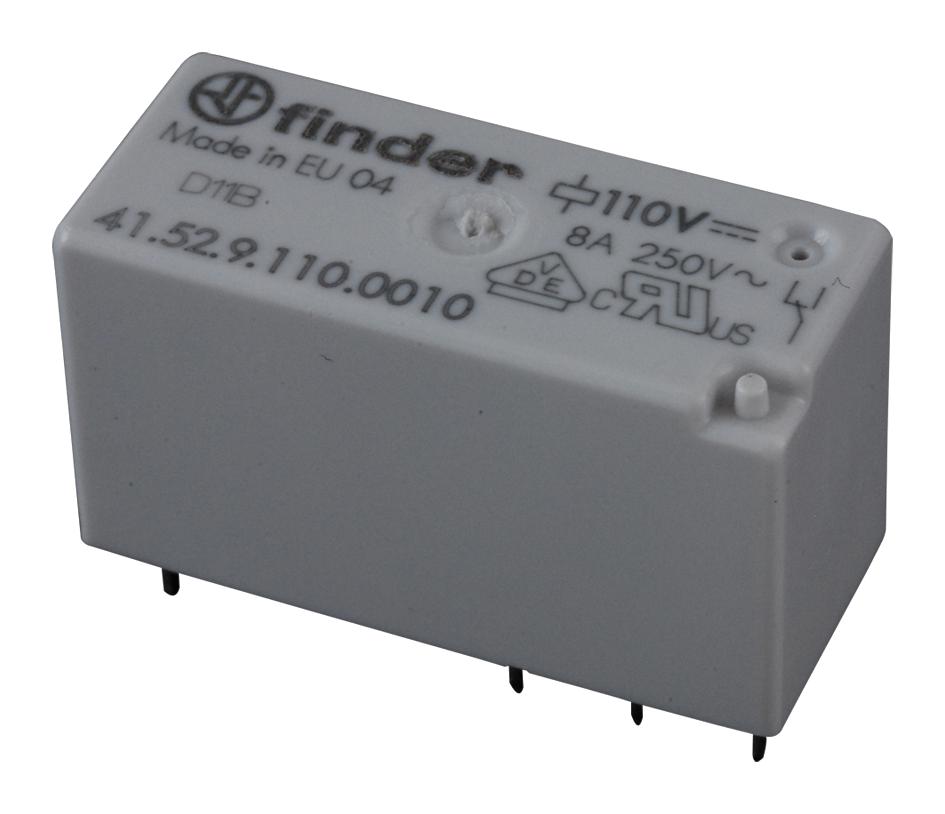

FINDER 415291100010 Low Profile PCB Relay
The Low Profile PCB Relay with DC coil from the 41.52 series features two change-over contacts made from cadmium-free AgNi, with a 5mm pin pitch. It offers 8mm contact spacing, provides 6kV (1.2/50µs) isolation, and is designed for industrial use. The relay is mounted on PCB direct or via socket, with a height of 15.7 mm, suitable for panel and DIN rail mounting. It is rated at 8A, with a wide operating temperature range of -40°C to +85°C, and complies with RT II environmental protection standards.
FINDER 415291100010 Low Profile PCB Relay Specifications:
- Contact Material: Cadmium-free AgNi
- Contact Configuration: 2CO (DPDT)
- Rated Current: 8A
- Rated Voltage: 250VAC / 400VAC maximum
- Isolation: 6kV (1.2/50µs surge)
- Pin Pitch: 5mm
- Mounting: PCB direct or via socket
- Height: 15.7 mm
- Operating Temperature Range: -40°C to +85°C
- Environmental Protection: RT II
- Coil Voltage Range: 24V DC (±10%)
- Operate/Release Time: 10/5 ms
- Dielectric Strength between coil and contacts: 6kV
- Switching Voltage: up to 250VAC
- Minimum Switching Load: 500 mW
- Mechanical Life: 10^7 cycles
- Electrical Life at Rated Load: 60,000 cycles
Buy the Innovative 41.52 Low Profile PCB Relay – Reliable Industrial Switching for Industrial Applications
Order the Finder Low Profile PCB Relay from the 41.52 series online today. Featuring cadmium-free contacts and 6kV isolation, it offers dependable switching with a compact 15.7 mm height. Suitable for industrial applications, the relay supports PCB direct mount or socket installation, operating efficiently across a temperature range of -40°C to +85°C. Its robust design ensures long-term durability, making it an ideal choice for automation, control systems, and machinery requiring reliable, high-performance relay solutions.
Buy Finder 415291100010 low profile PCB relay now and enhance your industrial automation with high reliability and compact design.
