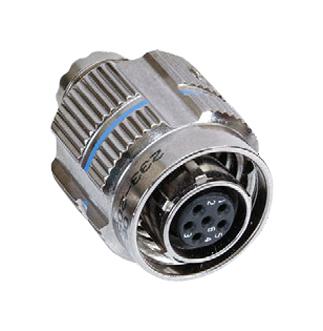

Glenair 806012ME83SMA ultraminiature connector
The ULTRAMINIATURE 806-012 plug connector offers a lightweight, rugged solution for aerospace and military applications. Made from aluminum with electroless nickel finish, it features a triple-start ACME mating thread for improved vibration resistance and quick coupling. Designed for unpressurized aircraft areas, it supports high temperature ranges from -65°C to +200°C, depending on the finish. The connector accommodates #20HD and #22HD contacts for 20-24 AWG and 22-28 AWG wire sizes, with a current rating up to 7.5 A. Its robust construction ensures durability against shock, vibration, humidity, salt spray, and high-altitude immersion, fulfilling MIL-Aero standards.
Glenair 806012ME83SMA ultraminiature connector Specifications:
- Shell Material: Aluminum
- Finish Options: Electroless Nickel, Black Zinc-Nickel, etc.
- Temperature Range: -65°C to +200°C (depending on finish)
- Contact Sizes: #20HD (20-24 AWG), #22HD (22-28 AWG)
- Current Rating: up to 7.5 A
- Vibration Resistance: MIL-DTL-38999M, 609.4 He
- Shock Resistance: EIA-364-27, 300g
- Cable Range: Suitable for various wire sizes
- Mating Threads: Triple-start stub ACME, M14x1.0, M19x1.0, M28x1.0, etc.
- Durability: 500 mating cycles
- Housing: Aluminum or stainless steel
- Sealing: High-grade dielectric inserts
- Other Features: Polarizing positions, snap-in crimp contacts
- Standards: MIL-Aero compliance
Buy the Glenair Series 806 Ultraminiature Circular Connector: 806-012
Order the Glenair Series 806 ultraminiature circular connector 806-012 online today and enjoy fast delivery. This lightweight, rugged connector features MIL-Aero compliance, high-temperature resistance, and superior vibration and shock durability. Its aluminum shell with electroless nickel finish ensures long-lasting performance in extreme aerospace environments. Supports multiple wire sizes and delivers reliable connections for unpressurized aircraft areas. Perfect for applications demanding high vibration resistance, moisture protection, and extended durability. Shop now and enhance your aerospace assemblies with this compact, high-performance connector designed for demanding conditions.
Buy Glenair Series 806 Ultraminiature Circular Connector 806-012 now and experience unmatched reliability and performance in rugged aerospace conditions.
Frequently Asked Questions
Where can I buy Glenair 806012ME83SMA?
You can click on the BUY or RFQ button to purchase 806012ME83SMA from an authorized Glenair distributor.
How do I troubleshoot issues or seek technical support for part 806012ME83SMA?
You can download the 806012ME83SMA datasheet or visit the Glenair website for support.
Who is the manufacturer of 806012ME83SMA?
Glenair
