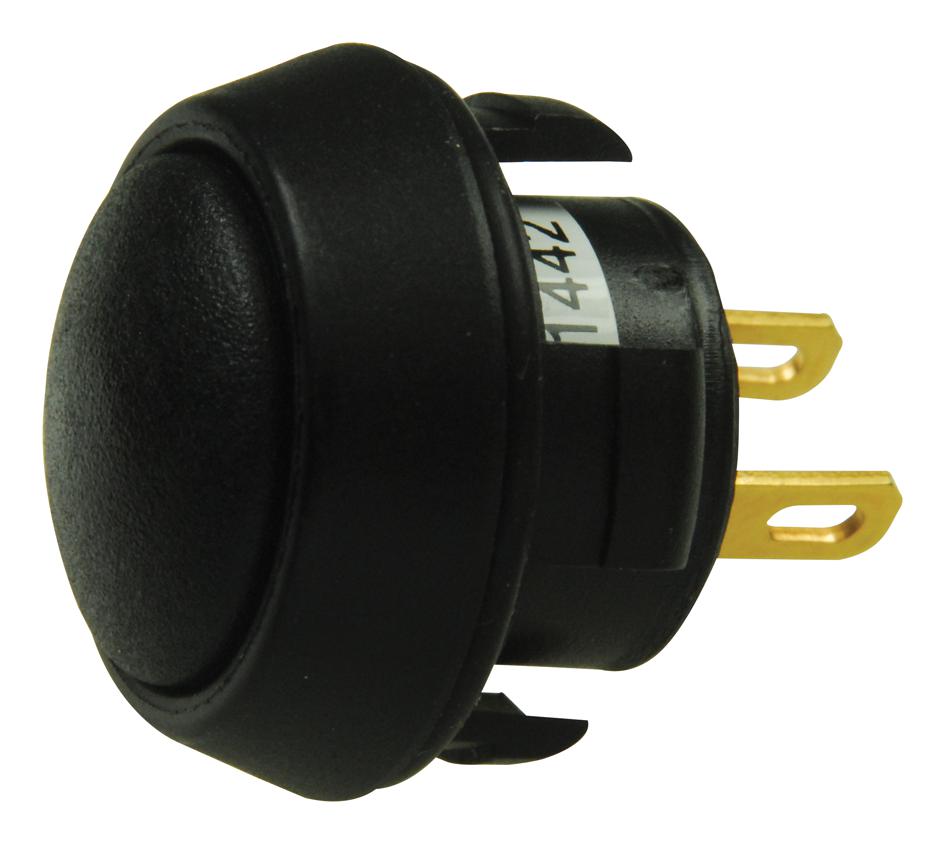

Grayhill 30100 Snap-in Panel Mount Switch
The Grayhill 30-100 series pushbutton switch provides a convenient snap-in panel mounting solution for a variety of industrial applications. Constructed with a durable nylon housing reinforced with 45% glass, this switch offers excellent resistance to wear and tear. The gold-plated contacts ensure low contact resistance and reliable signal transfer, while the sealed design protects against dust and moisture. The switch features an SPST (Single Pole Single Throw) momentary contact configuration, making it suitable for applications requiring temporary activation. Its robust design and reliable performance make it a preferred choice for control panels, machinery, and other demanding environments.
Grayhill 30100 Snap-in Panel Mount Switch Specifications:
- Button Material: Nylon, 45% Glass-filled
- Terminal Material: Brass, gold-plated over nickel
- Shorting Bar Material: Brass, gold-plated over nickel
- Internal Seal Material: Silicone Rubber
- O-ring Seal Material: Silicone
- Spring Material: Tinned music wire
- Travel: 0.090 Nominal
- Travel Before Make: 0.035 Nominal
- Cycles: 500,000 Actuations
- Operating Temperature: -40[o] C to +80[o] C
- Shock Resistance: 100 G’s/ 6 Milliseconds
- Rating at 24 VDC: 150 Milliamps
- Voltage Breakdown: 1000 Vac
- Contact Resistance: 25 milliohms max
- Insulation Resistance: 1,000 megaohms minimum
- Panel Thickness with O-ring: 0.098-.106 inches
- Panel Thickness without O-ring: 0.140-.144 inches
- Circuitry: SPST N.O.
