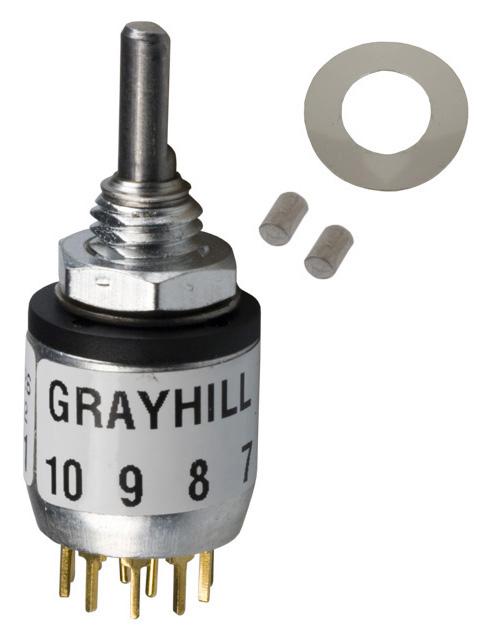

Grayhill 56D30011AJN industrial rotary switch
The 56D30-01-1-AJN is a versatile single-pole twelve-throw rotary switch designed for industrial applications. It features adjustable stops, non-shorting contacts, and a compact zinc die-cast housing with passivated stainless steel stop pins. The switch's detent rotor is molded thermoplastic, with a brass contact plated with silver over nickel for durable operation. It requires minimal behind-panel space, supports rapid prototyping, and is constructed to meet MIL-S-3786 standards for shock, vibration, thermal shock, and water pressure. High electrical performance and robust materials make it suitable for control systems and automation tasks.
Grayhill 56D30011AJN industrial rotary switch Specifications:
- Type: Single-pole twelve-throw (SP12T)
- Housing Material: Zinc die-cast, zinc-plated with chromate treatment
- Stop Pins Material: Passivated 303 stainless steel
- Detent Rotor: Molded thermoplastic
- Rotor Contact: Brass, silver over nickel plate
- Detent Spring: Tinned music wire
- Detent Balls: Steel, nickel-plated
- Electrical Ratings: Contact Resistance max 100 milliohms, Insulation Resistance min 10 gigohms
- Voltage: 600 Vac minimum, resistive load
- Max Contact Carry: 6 amperes continuously
- Stop Strength: Minimum 7.5 Ib-in
- Rotational Torque: 3.5 to 9 oz-in
- Mounting: Panel sealed with O-ring, shaft sealed with O-ring
- Standards: MIL-S-3786 for shock, vibration, thermal shock, water pressure resistance
- Dimensions and Finishes: Zinc die-cast housing, stainless steel stop pins, thermoplastic rotor, brass contact, durable coating
- Operating Temp: -55°C to +105°C
- Insulation Resistance: 10,000 Mohms minimum
- Breaking Voltage: 600 Vac minimum
- Life Expectancy: Based on load-lift curve, customizable for applications
Buy the Grayhill 56D30-01-1-AJN – Reliable Industrial Rotary Switch for Automation Applications
Purchase the Grayhill 56D30-01-1-AJN online today and experience reliable operation for your automation and control projects. Its adjustable stop positions, durable zinc die-cast housing, and non-shorting contacts ensure versatile and safe switching performance. Designed to meet MIL-S-3786 standards, this switch offers high electrical ratings with minimal space requirements behind the panel. Whether for prototyping or installation, order online now to benefit from quick delivery, competitive pricing, and technical support to enhance your industrial systems efficiently.
Order your Grayhill Series 56D30-01-1-AJN industrial rotary switch today and enhance your control systems with durable, high-performance switching solutions.
