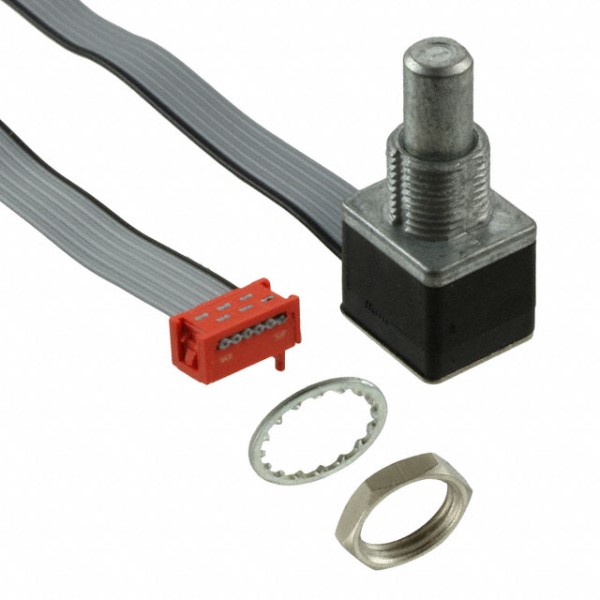

Grayhill 62AG22L0040C Rotary Encoder
The Grayhill Series 62AG rotary encoder provides reliable performance with over 1 million rotational cycles, 16 detent positions, and a 2-bit gray code output. Its robust design includes a 4-inch cable assembly and optional pushbutton, making it suitable for automotive, medical, test and measurement, and audio/video applications. The device features RoHS compliance, a shaft with 22.5° angle of throw across 16 detent positions, and a high-quality construction with reinforced nylon rotors and stainless-steel springs. Ideal for high-volume, cost-effective control systems requiring durability and precision.
Grayhill 62AG22L0040C Rotary Encoder Specifications:
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Humidity: 96 Hours at 90-95% humidity at 40°C
- Vibration: Harmonic motion at 15g, 10-2000 Hz for 12 hours
- Shock: 100g for 6 ms (half-sine and sawtooth wave tests)
- Operating Voltage: 5.00 ± 0.25 Vdc
- Supply Current: Max 30 mA at 5 Vdc
- Logic Output: Open collector, high ≥3.0 Vdc, low ≤1.0 Vdc
- Power Consumption: Max 150 mW at 5 Vdc
- Output: Phototransistor, optical fall time ≤30ms
- Rotational Torque: Low approx 2.0 in-oz, high approx 3.5 in-oz
- Mechanical Life: 1,000,000 cycles
- Mounting Torque: Max 15 in-lb
- Shaft Pushout Force: Minimum 45 lbs
- Terminal Strength: Min 15 lbs
- Maximum Rotational Speed: 100 rpm
- Pushbutton Rating: 10 mA at 5 Vdc
- Materials: Zamak 2 shaft and bushing, reinforced nylon rotor, stainless steel spring, Lexan light pipe, Delrin code rotor, stainless steel backplate, and nylon housing
- Cable: Copper stranded, PVC insulation, with .050 center connector or cable options
- Cable Length Options: 2.0, 3.0, 4.0, 5.0, 6.0 inches
- Angle of Throw: 22.5° with 16 detent positions
- Thread: 3/8-32 UNEF-2A, within .030 inches of shoulder
- RoHS compliant and designed for high-volume, cost-effective manufacturing
Buy the Grayhill Series 62AG Rotary Encoder: 62AG22L0040C
Enhance your control systems with the Grayhill Series 62AG rotary encoder, offering 16 detent positions, gray code output, and a durable design suited for automotive, medical, and industrial applications. Featuring a 4-inch cable assembly and optional pushbutton, this reliable component withstands a million cycles, vibration, shock, and harsh environmental conditions. Its RoHS compliance, high-quality materials, and precision construction ensure long-term performance. Perfect for high-volume manufacturing, order today online to integrate this high-durability, cost-effective rotary encoder into your electronic control solutions.
Order your Grayhill Series 62AG rotary encoder with 16 detents and optional pushbutton today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Grayhill 62AG22L0040C?
You can click on the BUY or RFQ button to purchase 62AG22L0040C from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 62AG22L0040C?
You can download the 62AG22L0040C datasheet or visit the Grayhill website for support.
Who is the manufacturer of 62AG22L0040C?
Grayhill
