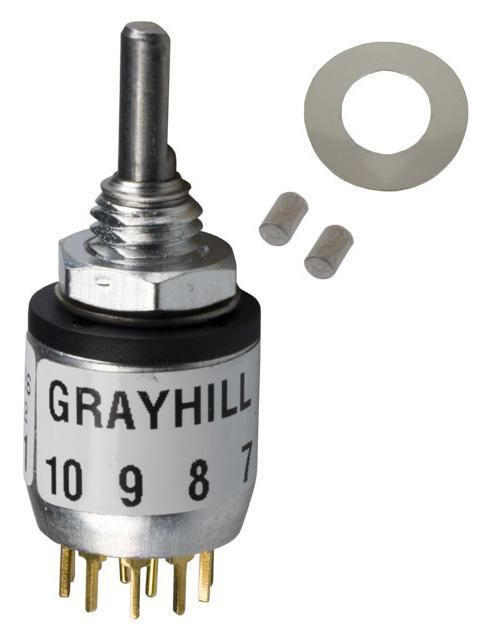

Grayhill 56D36012AJN rotary switch
The 56D36-01-2-AJN is a double-pole, five-throw rotary switch with an adjustable stop and non-shorting contacts, designed for industrial use. Constructed with a zinc die-cast housing, stainless steel stop pins, molded thermoplastic rotor, and a thermoset plastic base, it ensures durability and reliable performance. The switch features a silver-over-nickel plated brass rotor contact, nickel-plated steel detent balls, and tinned music wire detent spring. It offers low contact resistance, high insulation resistance, and requires minimal behind-panel space for installation, ideal for rapid prototyping and industrial control applications.
Grayhill 56D36012AJN rotary switch Specifications:
- Housing: Zinc die-cast, zinc-plated with chromate treatment
- Stop Pins: Passivated 303 stainless steel
- Rotor: Molded thermoplastic with silver-over-nickel plated brass contact
- Detent Spring: Tinned music wire
- Detent Balls: Steel, nickel-plated
- Contact Resistance: 100 milliohms maximum
- Insulation Resistance: 10,000 Mohms minimum between insulated parts
- Voltage Breakdown: 600 Vac minimum between insulated parts
- Mounting: Requires behind-panel space, with adjustable stop for rapid prototyping
- Number of Poles: Double-pole
- Number of Throws: Five-throw (5T)
- Position Configuration: Non-shorting contacts
- Mechanical Durability: Designed for industrial control environments
- Size and Dimensions: Compact construction suitable for panel mounting
Buy the Grayhill Series 56 Rotary Switches: 56D36012AJN
Order the Grayhill 56D36012AJN double-pole five-throw rotary switch online today to ensure high-quality performance for industrial applications. With an adjustable stop and non-shorting contacts, this switch guarantees durability and precise control. Its zinc die-cast housing, plated brass rotor contact, and stainless steel stop pins provide excellent electrical and mechanical reliability. Easy to install with minimal behind-panel space required, it is ideal for rapid prototyping and demanding control environments. Purchase now to benefit from fast shipping and trusted quality for your automation projects.
Buy Grayhill 56D36012AJN now and experience unmatched reliability and industrial performance with adjustable stops for quick prototyping.
Frequently Asked Questions
Where can I buy Grayhill 56D36012AJN?
You can click on the BUY or RFQ button to purchase 56D36012AJN from an authorized Grayhill distributor.
How do I troubleshoot issues or seek technical support for part 56D36012AJN?
You can download the 56D36012AJN datasheet or visit the Grayhill website for support.
Who is the manufacturer of 56D36012AJN?
Grayhill
