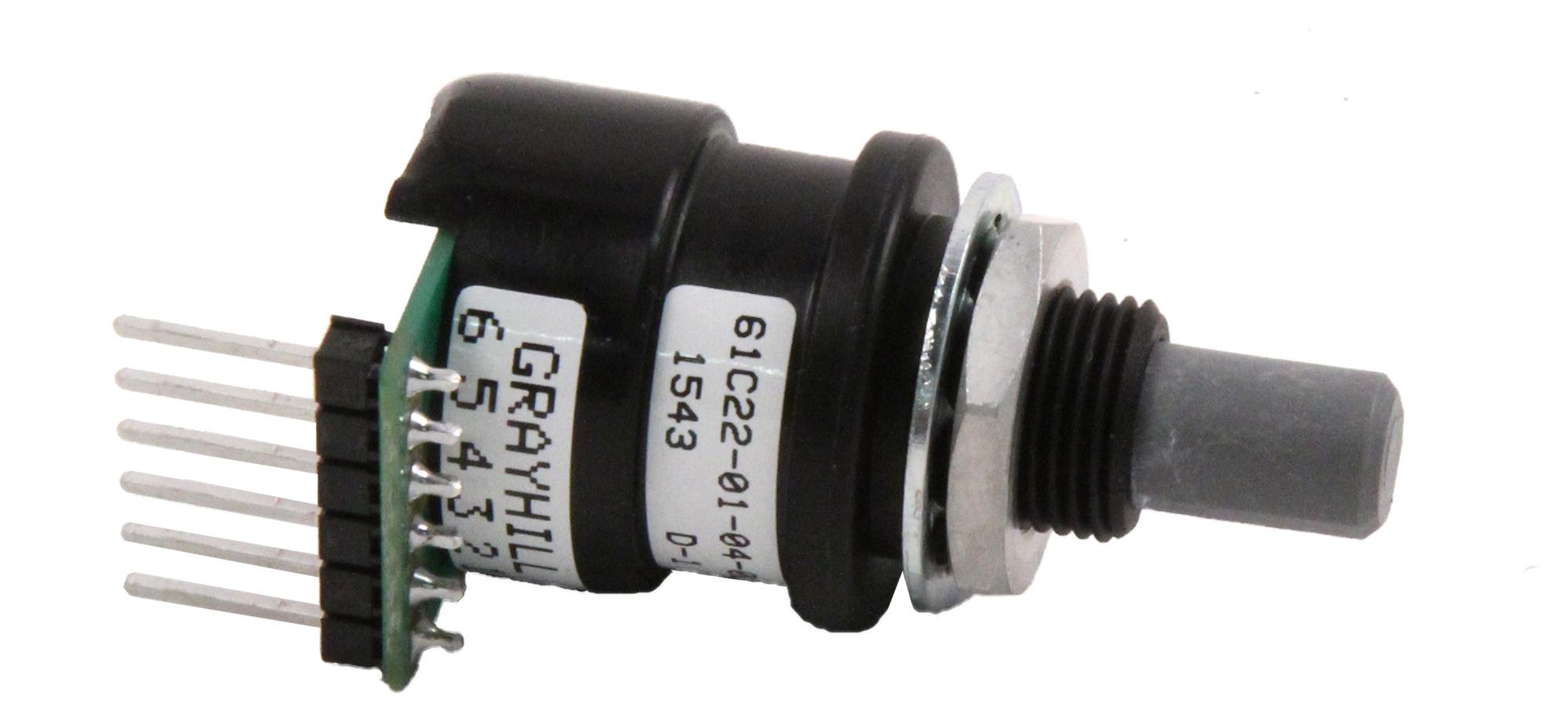

Grayhill 61C22010402 Optical Encoder
The 61C22-01-04-02 is a standard optical encoder featuring tin-plated phosphor bronze terminals and a data entry pushbutton switch activated by the switch shaft. It utilizes quadrature coding and has a reinforced thermoplastic shaft and bushing for durability. The encoder is optically coupled to ensure over one million trouble-free rotations and is compatible with CMOS, TTL, and HCMOS logic levels. Commonly used to adjust display icons, input data, and settings such as radio frequencies, drill depths, and RPMs. It offers a 22.25° or 16-position angle of throw and operates within a temperature range of -40°C to 85°C. The device is suitable for sensing and instrumentation applications.
Grayhill 61C22010402 Optical Encoder Specifications:
- Coding: 2-bit quadrature output
- Operating Voltage: 5.0 +.25 Vdc
- Supply Current: 30 mA max at 5 Vdc
- Logic Level High: 3.8V (CMOS), 2.7V (TTL) min
- Logic Level Low: 0.8V max
- Operating Temperature Range: -40°C to 85°C
- Rotational Life: over 1,000,000 cycles
- Shaft Push Out Force: minimum 20 lbs
- Environmental Humidity: 90-95% at 40°C for 96 hours
- Vibration Resistance: 15g for 12 hours per MIL-STD-202
- Shock Resistance: 100g for 6 ms
- Materials: Reinforced thermoplastic bushing and shaft, steel detent balls, stainless steel pushbutton contacts
- Dimensions: Shaft diameter 0.221 inches, angle of throw 22.25° or 16 positions, mounting hardware with brass nut
- Temperature Range: -40°C to 85°C
Buy the Grayhill Series 61C Optical Encoder: 61C22010402
Purchase the Grayhill 61C22010402 optical encoder online today for precise control in industrial automation, measurement, and control systems. Crafted with durable thermoplastic components and compatible with CMOS, TTL, and HCMOS logic levels, this encoder offers over one million trouble-free rotations. Equipped with a pushbutton switch and available in 16 or 32 positions with a 22.25° or 16-position angle of throw, it performs reliably within -40°C to 85°C. Ideal for adjusting display icons, parameters, and input data in demanding environments, ensuring accurate and consistent operation.
Buy Grayhill 61C22010402 now and experience unmatched reliability and performance for your control and instrumentation needs.
