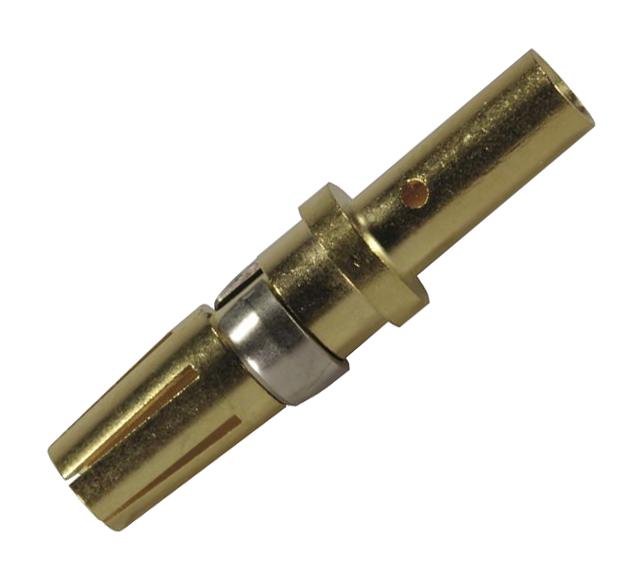

Harting 09030006213 High Current Crimp Connector
The HARTING 09030006213 is a DIN-Signal high current crimp connector specifically engineered for demanding industrial applications. This connector provides a reliable connection for DIN 41612 Type M and related configurations, supporting a conductor cross-section of 1.5 mm² (AWG 16) and an operating current of up to 10A. Manufactured with turned copper alloy contacts and a noble metal surface finish, it ensures excellent conductivity and durability. The connector is RoHS compliant with exemptions and is suitable for use in various industrial automation and control systems. It is manufactured in Germany and packaged in quantities of 100.
Harting 09030006213 High Current Crimp Connector Specifications:
- Part Number: 09 03 000 6213
- Specification: DIN-Signal high current f, 10A crimp
- Contact Type: Crimp contact
- Contact Description: Straight
- Contacts For: DIN 41612 Type M, DIN 41612 Type M invers, DIN 41612 Type MH 21+5, DIN 41612 Bauform M 0+2, har-modular®M module
- Gender: Female contact for female connectors
- Manufacturing Process: Turned contacts
- Performance Level: 1
- Conductor Cross-section: 1.5 mm²
- AWG: AWG 16
- Operating Current: ≤10 A
- Material (Contacts): Copper alloy
- Surface (Contacts): Noble metal
- RoHS: compliant with exemption
- RoHS Exemptions: 6(c): Copper alloy containing up to 4 % lead by weight
- ELV Status: compliant with exemption
- China RoHS: 50
- REACH Annex XVII Substances: No
- REACH Annex XIV Substances: No
- REACH SVHC Substances: Lead
- Specifications: DIN 41626
- Packaging Size: 100
- Net Weight: 1.6 g
- Country of Origin: Germany
- European Customs Tariff Number: 85366990
- eCl@ss: 27440204
