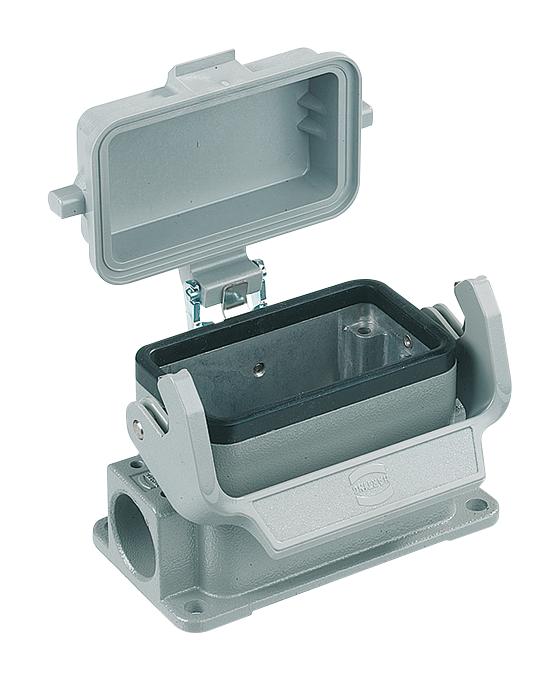

Harting 09300160295 Han Base Surface HC Lever
The HARTING Han Base Surface HC 1 Lever Thermoplas is a robust surface-mounted housing ideal for industrial connector applications. Constructed from aluminum die-cast with a powder-coated finish (RAL 7037 dust grey), it provides excellent durability and protection. The housing incorporates a thermo-plastic cover, a single locking lever, and utilizes NBR seals for reliable performance. It is designed for side entry, accommodates two Pg 21 cable entries, and is rated IP65 for protection against dust and water ingress. Compliant with RoHS and various industry standards, this housing is suitable for demanding industrial environments.
Harting 09300160295 Han Base Surface HC Lever Specifications:
- Part Number: 09 30 016 0295
- Specification: Han Base Surface HC 1 Lever Thermoplas
- Series of hoods/housings: Han®B
- Type of hood/housing: Surface mounted housing
- Description of hood/housing: With thermo-plastic cover
- Type: High construction
- Size: 16 B
- Version: Side entry
- Cable entry: 2x Pg 21
- Locking type: Single locking lever
- Han-Easy Lock®: Yes
- Field of application: Standard hoods/housings for industrial connectors
- Limiting temperature: -40 ... +125 °C
- Degree of protection: IP65
- Type rating UL: 4X, 12
- Material (hood/housing): Aluminum die-cast
- Surface (hood/housing): Powder-coated
- Colour (hood/housing): RAL 7037 (dust grey)
- Material (seal): NBR
- Material (locking): Polycarbonate (PC), Stainless steel
- Colour (locking): RAL 7037 (dust grey)
- Flammability class: V-0
- RoHS: compliant
- ELV status: compliant
- China RoHS: e
- REACH Annex XVII: Not contained
- REACH ANNEX XIV: Not contained
- REACH SVHC substances: 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65: Nickel, Naphthalene
- Approvals: DNV GL
- UL/CSA: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076
- CE: Yes
- Packaging size: 1
- Net weight: 438.8 g
- Country of origin: Germany
- Customs tariff number: 85389099
- eCl@ss: 27440202
