Harting 09031967921 Datasheet & Stock

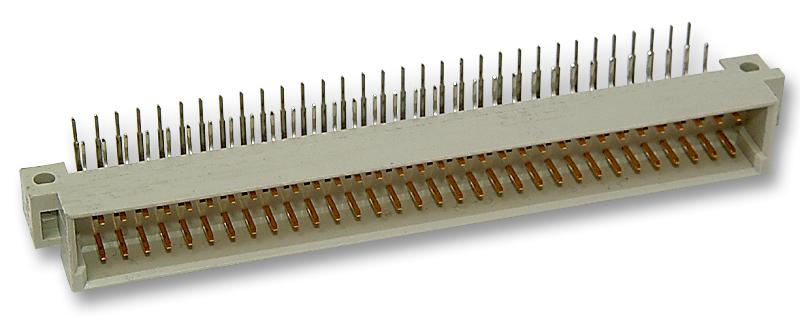

This is a 96-position, 3-row angled male DIN 41612 signal connector with type C configuration, 2.54mm pitch, solder termination, and 3mm solder length. The contacts are made of copper alloy plated with gold over nickel for enhanced conductivity and corrosion resistance. DIN 41612 connectors are industry standards used for board-to-board and cable-to-board connections, supporting both data and power transfer. They are available in various configurations with 3 to 160 ways, different termination methods, and contact current capacities ranging from 2A to 40A. Products are classified as DIN Signal or DIN Power connectors based on their maximum current ratings, with standard signal connectors supporting up to 2A per contact. The range also includes extension models like the har-bus® 64, offering 160 contacts and additional rows. The connector complies with IEC 60603-2 and is rated for 50 mating cycles. It features UL94V-0 flammability rating and is designed for industrial applications.

View 09031967921Datasheet [pdf]
